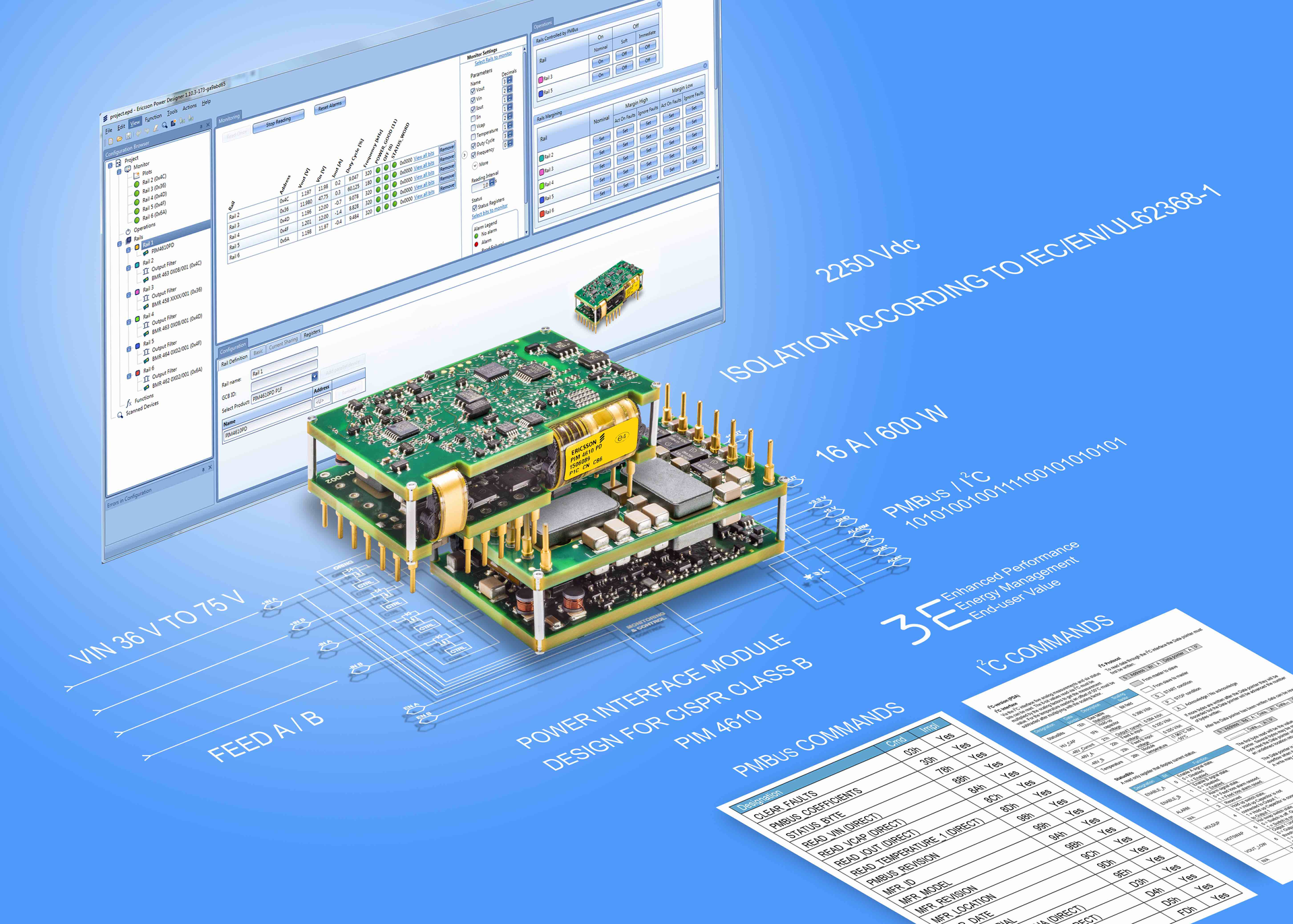

Ericsson Power Modules announced the PIM4610PD, an extension of its popular 3E Power Interface Module (PIM) family that are compliant with the industry-standard quarter-brick footprint. The new module has been optimized especially to simplify design in blade server applications based on ATCA and PICMG 3.7 systems. The module is also highly suited to server and storage systems in any industrial, telecom and data communications application that employs either distributed power or intermediate bus voltage architectures.
Based on Ericsson's leading-edge energy-optimization platform, the PIM4610PD operates over an input range of 36V to 75V. The module also offers industry-leading high-power performance delivering 864W with a 54V input, 768W at 48V, and 600W at 37.5V. Efficiency performance is again industry leading - offering up to 98.8% at 600W for the main unit - resulting in reduced energy and cooling costs.
The PIM also offers built-in digital monitoring and an extensive range of energy-monitoring functionalities via its I2C/PMBus interface. Other features of the PIM4610PD include: protection against input transients, reverse polarity, over-temperature, over-current, input under-voltage and inrush current. Additionally, the PIM has a configurable feature that enables a well-controlled shutdown procedure. The feature enables de-assertion of the Power Good pin when it determines that input power is below a certain level, enabling the protection of semiconductor devices such as CPUs and FPGAs.
The module also has integrated hot-swap functionality and hold-up charge and discharge management. The inputs also include dual power feeds with ORing functionality and 'enable' signaling. Further specifications include: management power output of 3.3V and up to 7A; an MTBF of 2.66 million hours, according to Telcordia SR-332 Issue 2, Method 1, and isolation of 2250Vdc, which meets the latest IEC/EN/UL62368-1 safety standard.
Available in the industry-standard quarter-brick format, measuring 2.28 x 1.45 x 0.84in (57.9 x 36.8 x 21.33mm), the PIM4610PD has been built to the highest quality design and manufacturing standards, which have been employed by Ericsson for many years and deliver extremely high levels of confidence to customers.
