The Sorensen™ Intelligent-Bidirectional Energy AMplified (i-BEAM) Series features full DC source and sink capabilities with power levels from 60 kW up to 1.3 MW. The i-BEAM series is fully scalable up to 650 kW and beyond up to 1.3 MW with parallel systems. The available voltage ranges of 80V, 300V, 600V, 800V and 1,000VDC provide full power up to 1,000A within a single system.

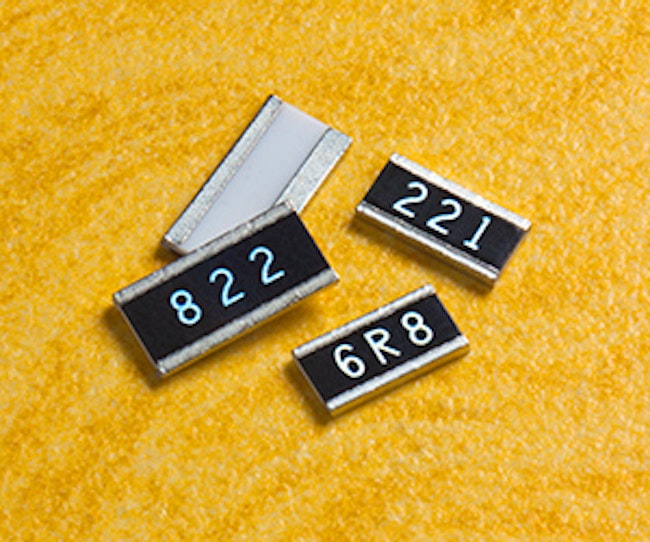

KOA Speer’s wide terminal chip resistors feature reverse-geometry compared to standard resistors, with closely-spaced electrodes for better heat dissipation and heat-cycle durability. KOA's wide terminal resistors, including WK73, WK73R, WK73S, WG73, WU73 and WN73H series, achieve higher rated power vs standard resistors with similar dimensions allowing for downsizing and increased board space.

Connect adapter plate to the test socket, place device inside, and latch thermal chuck. Actively control 10 watt DUT from -40C to +155C using Imperium Thermal System.
