Graphite-Filled Epoxy

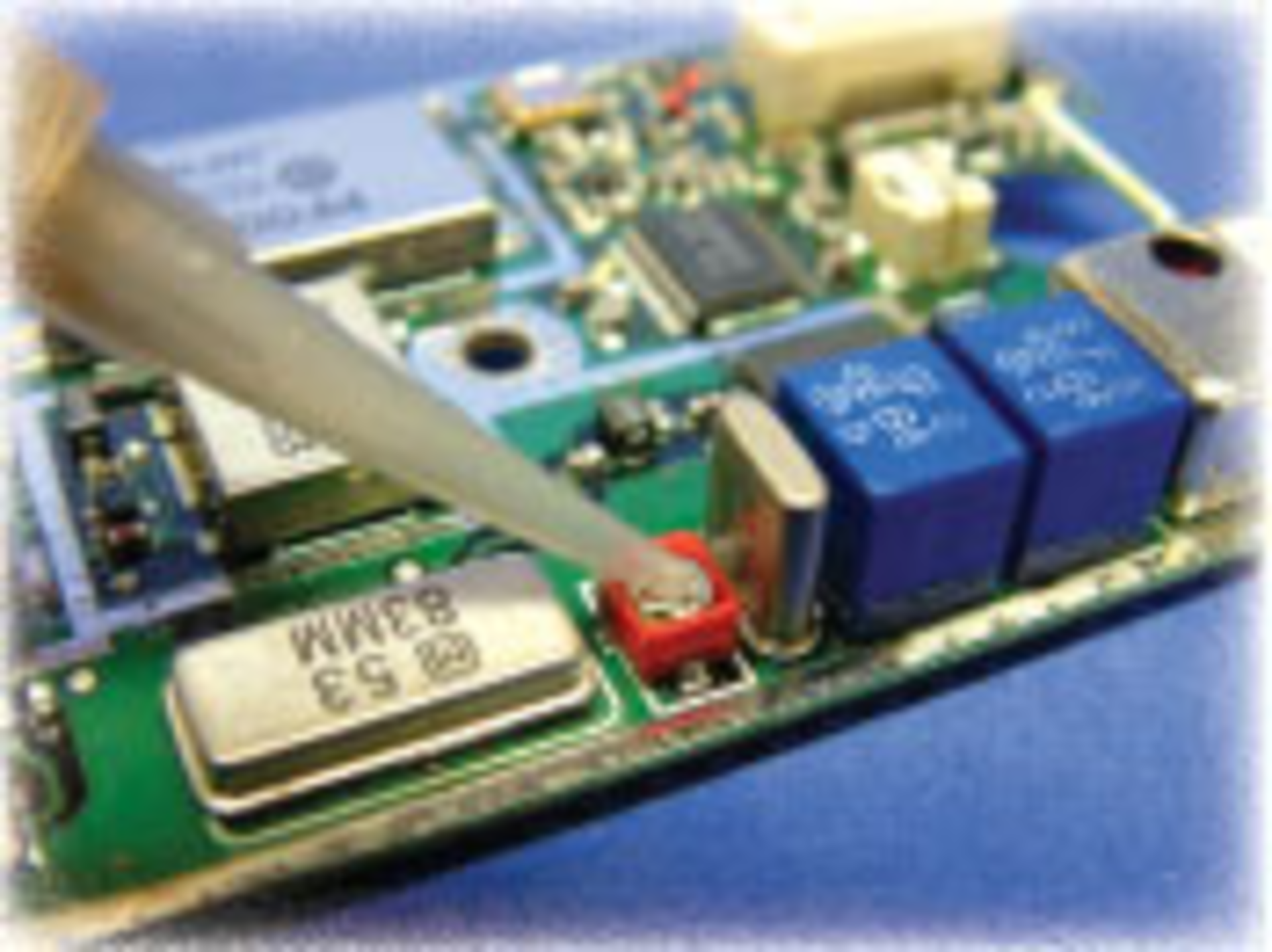

Polymer System EP75-1 is a graphite-filled, electrically conductive epoxy for RFI/EMC shielding and grounding applications. Formulated to cure at room temperatures, this two-part epoxy develops a bonding strength of >1,500 psi tensile shear. Volume resistivity of the cured system is 50 to 100 Ω-cm. The system also features nonmagnetic properties and lubricity and does not contain solvents or diluents. The bonds are adaptable to thermal cycling and resistant to chemicals including water, oils, acids, and bases. The temperature range is -60°F to +250°F.

Master Bond
