Variable Diameter Ferrite

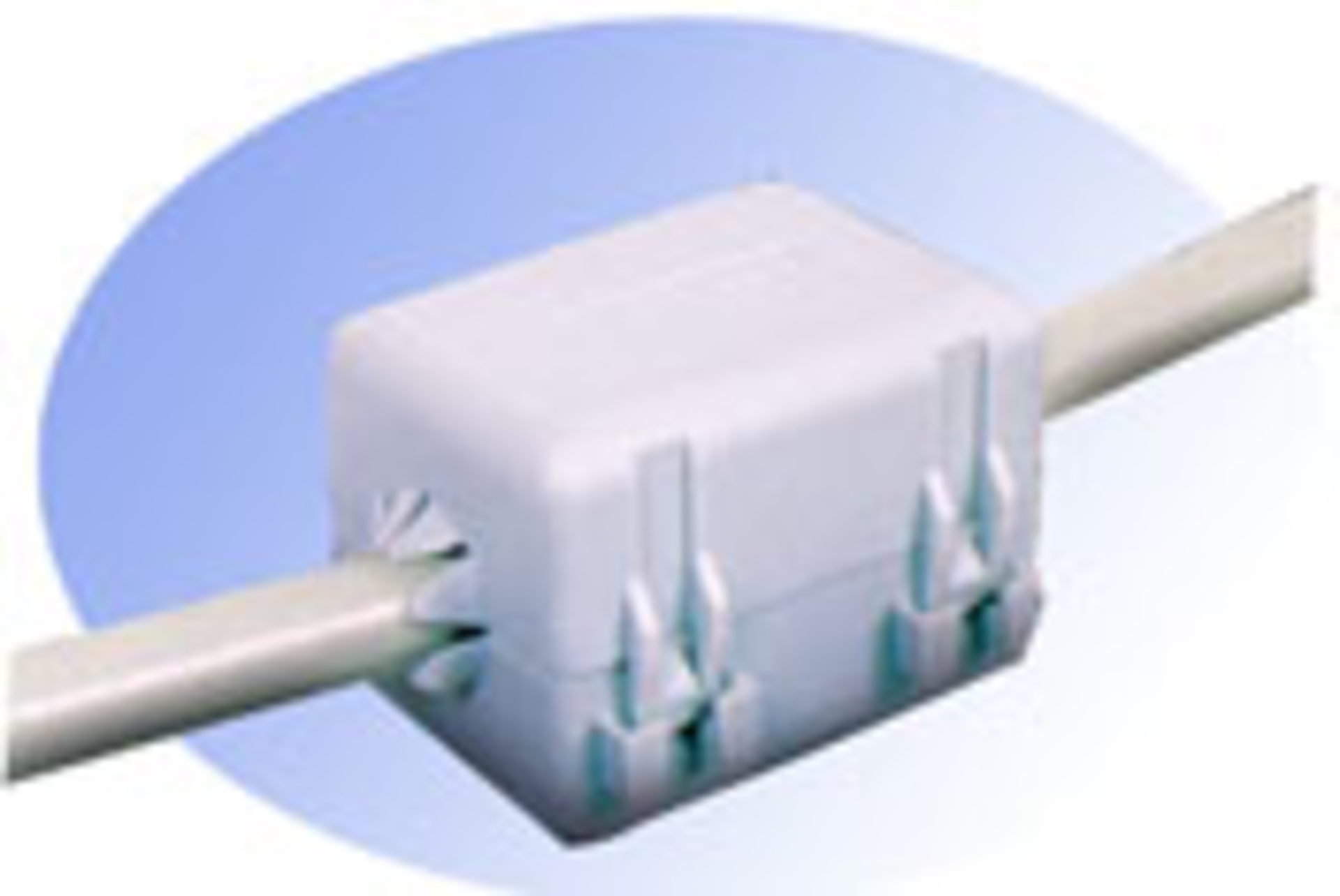

The SS28B2044 Variable Diameter End Port Ferrite addresses applications that operate between 10 MHz and 1 GHz. It offers 260 Ω of impedance at 100 MHz. The bisected FerriShield ferrite integrates 16 spring-like flutes around the inside diameter of its nylon case to accommodate installation on cables ranging from 0.125” to 0.730”. An optional adhesive mount pad can be added to the ferrite base to help anchor cables inside an electronic enclosure. Leader Tech
