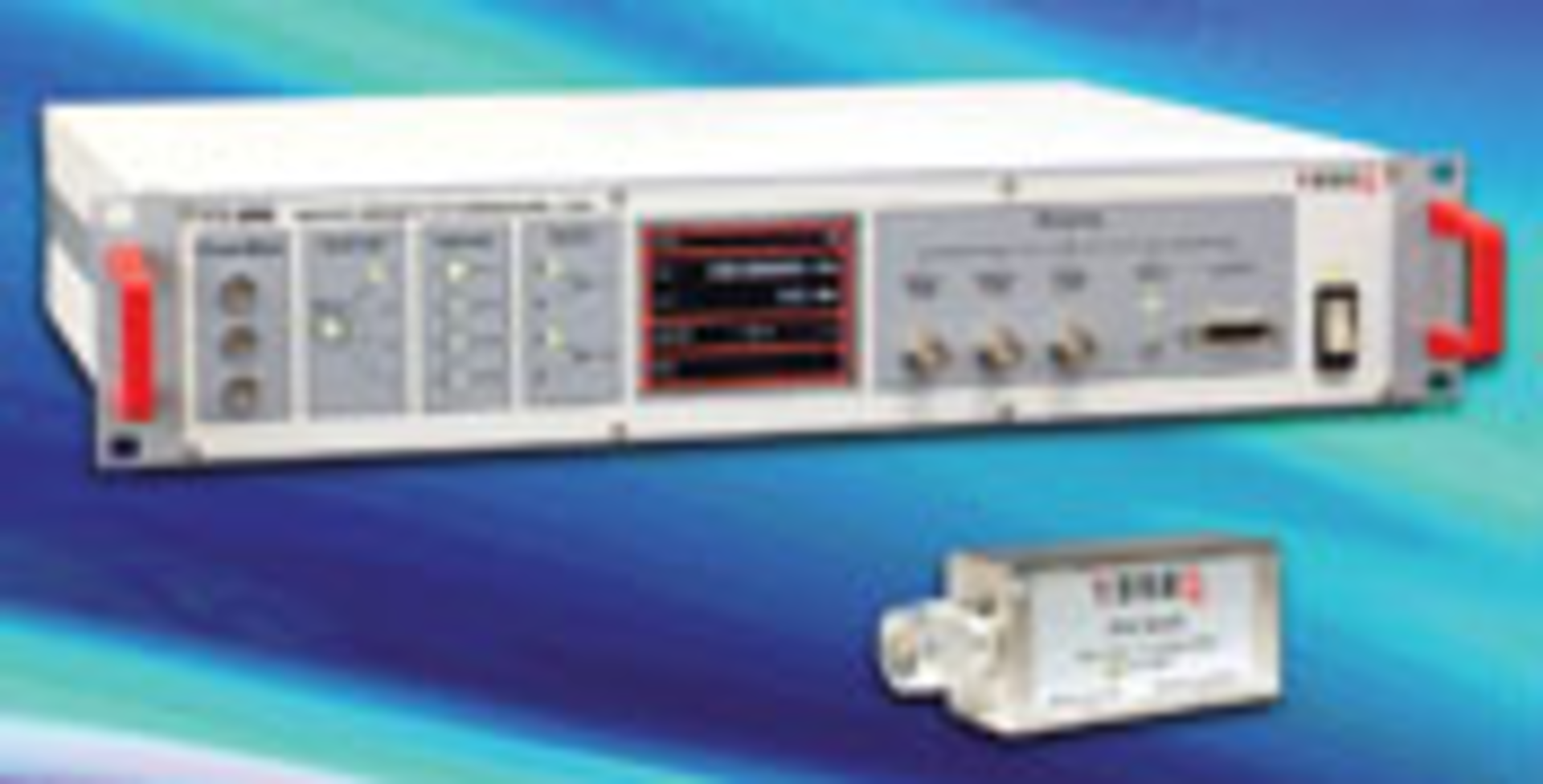

The enhanced ITS 6006 System for radiated immunity testing features the PMR 6006 (direct connect) and PMU 6006 (USB-powered) RF Power Meters, a 1-MHz to 6-GHz frequency range, and a -45-dBm to +20-dBm linear measurement range. It also includes an RF signal generator with AM and PM modulators, RF switches, inputs for up to three external power meters, EUT monitoring and control ports, amplifier control outputs, and software. Three PMR 6006 units can be connected directly to the ITS 6006 using software that permits numerous readings concurrently. The PMU 6006 ships with Windows software that manages multiple meter readouts simultaneously. Teseq
