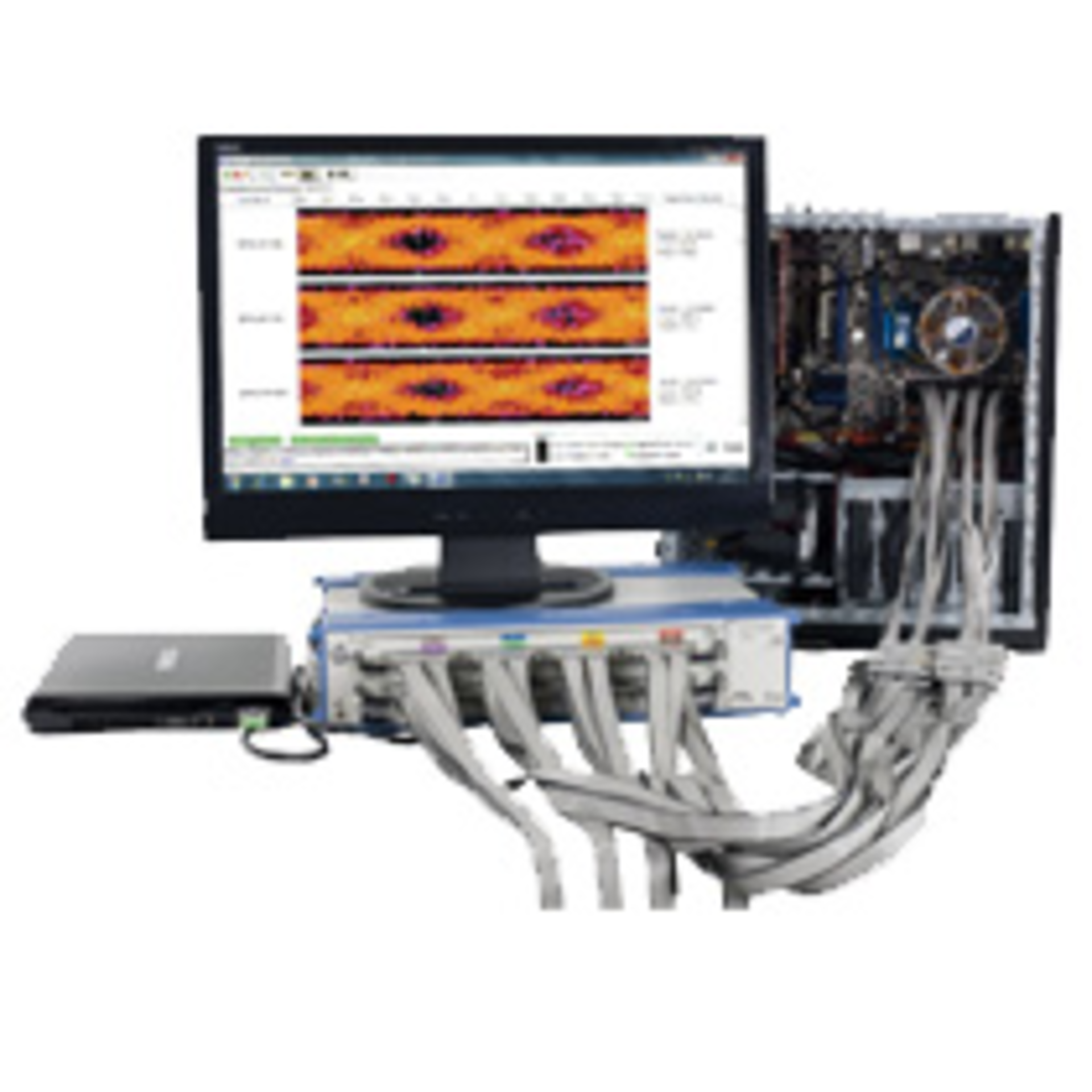

The U4154A Logic Analyzer Module combines a data capture speed of 4 Gb/s on 68 channels and 2.5 Gb/s on 136 channels with the capability to catch data on eye openings as small as 100 ps x 100 mV. Timing zoom supports simultaneous state and timing measurements with 80-ps timing resolution and 256-kS memory depth.
The AXIe-based analyzer and associated probes and analysis software provide capabilities for working with DDR memory systems, high-speed ASICs, A/D converters, and FPGAs. The B4622A DDR2/3 Protocol-Compliance and Analysis Tool automates measurements on deep DDR bus traces to help identify protocol problem areas.
The module is compatible with the company’s M9502A two-slot chassis. Multiple modules can be combined on a single time base and trigger sequencer.
