3-phase EMI Filter Features Touch-proof Terminals

This single stage, 3-phase power line filter family targets low to midrange power inverters as well as other chassis-mounted applications that require high insertion loss performance in a compact mechanical form factor.
Jan. 19, 2016

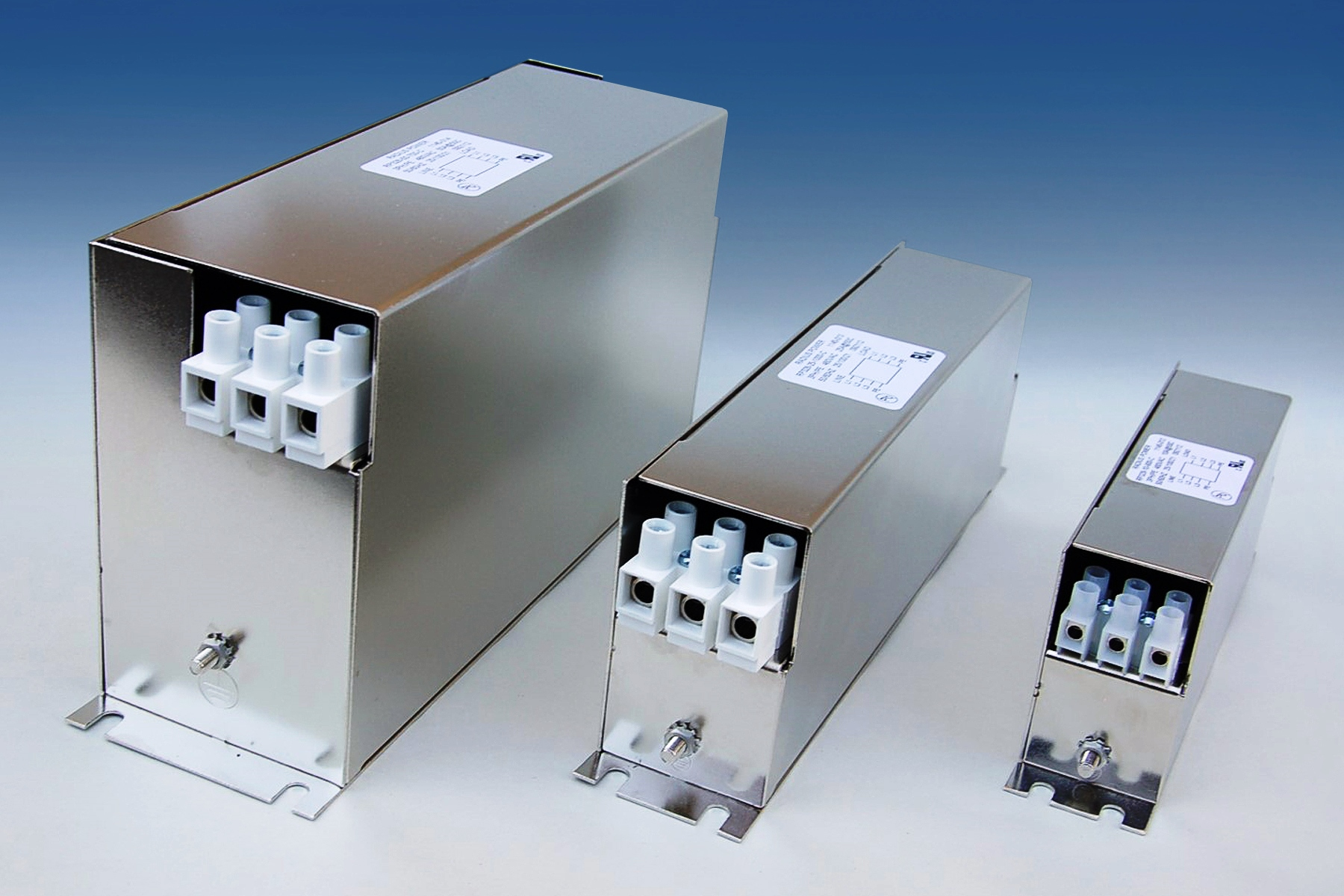

Powerelectronics 3915 115029astrodyne

Astrodyne TDI offers its RP328 series with screw-type, touch-proof terminals. This single stage, 3-phase power line filter family targets low to midrange power inverters as well as other chassis-mounted applications that require high insertion loss performance in a compact mechanical form factor.

The cost-effective RP328 series is ideal for use with 3-phase variable frequency drives (VFD) and inverter-based systems that require a small mounting footprint. Astrodyne TDI's RP328 family of filters have a current rating up to 180 A and are rated at 480 VAC at 50/60/400 Hz. The RP328 filter series offers a wide range of line to ground (Y) capacitance values, resulting in thousands of possible configurations. All variations are UL, CSA and IEC/EN approved. Customized solutions can be offered for demanding applications.

Astrodyne TDI's UL and IEC Client Data Acceptance Program' ensures unparalleled time-to-market advantages to customers seeking agency approved customized solutions. Technical Specifications

  • Touch-proof terminals
  • UL, CSA and IEC/EN approved
  • Current rating up to 180 A
  • Rated at 480 VAC at 50/60/400 Hz
