COM Express Type 6 Module Enhances Graphic Performance

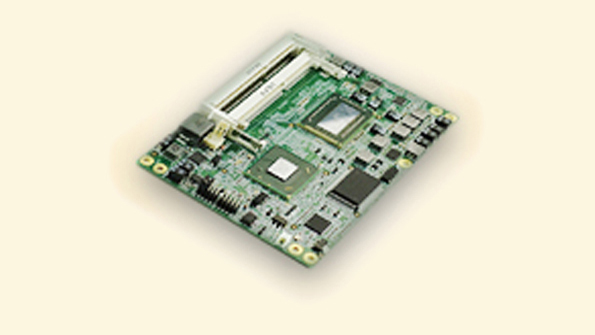

Acrosser's newest COM Express Basic Type 6 Module, the ACM-B4080, features an Intel 3rd generation Core i7 processor with QM77 platform and two DDR3-1333 SO-DIMM's with ECC to provide increased computing and graphic performance. Suitable for industrial automation, entertainment, medical, test & measurement and transportation applications, the module is based on COM Express Type 6 pin-out design and supports two DDR3-1333 SO-DIMM sockets with ECC, and four native USB 3.0 ports. By utilizing the company's ATX form-factor carrier board, the ACM-B4080 provides speed and reliability. Two SATA 3.0, two SATA 2.0, four USB 3.0, four USB 2.0, one GbE and I2C, and a SMBus interface are integrated into the module. Even with the enhanced computing and graphic performance, the optimized power design boasts high power efficiency and decreased system heat. The Intel 3rd generation Core i7-3615QE FCBGA1023 processor supports three independent displays with multiple output: 24-bit LVDS, VGA, HDMI and one DDI interface. The ACM-B6360 SBC and the ACM-B4080 are available now.

ACROSSER TECHNOLOGY
