Ultra Small Package Limiter Operates over 0.1 to 20GHz

April 16, 2020


Limiter

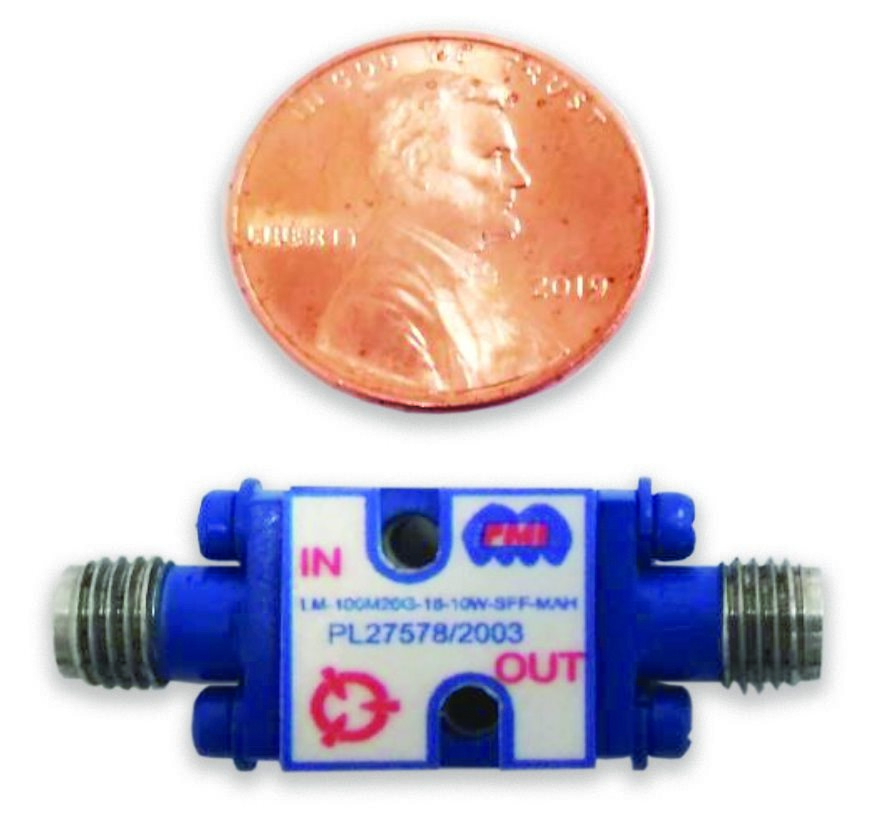

s are great solutions in RF systems where you need to protect the line up of circuits from potential excessive power at the input. Planar Modelithics Industries (PMI) has released a new device in an ultra-small package. The device model is LM-100M20G-18-10W-SFF-MAH and operates from 0.1GHz to 20GHz. It features a recovery time of 115nSec and 15dB max RF leakage. The input/output VSWR is specified as 2/1 Max, and the insertion loss is a guaranteed 3.0dB Max over the entire operating frequency range. The device comes in a housing that is 0.5”x0.5”x0.22” and has female SMA connectors on the input and output. Furthermore, the device is capable of operating over a temperature range of -40C to +85C.

For more information, click here
