Step-Down DC/DC Converter Is Rated 3.5 A At 42 V

March 14, 2014

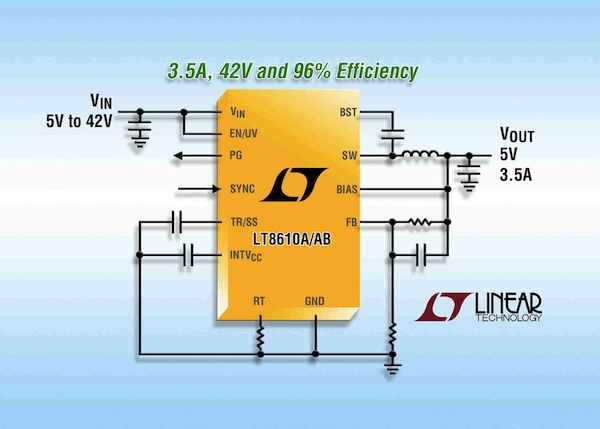

Linear Technology Corporation announces the LT8610A and LT8610AB synchronous step-down regulators.

The LT8610A and LT8610AB from Linear Technology Corporation are 3.5 A, 42 V input capable synchronous step-down switching regulators. Synchronous rectification delivers efficiency as high as 96% while Burst Mode® operation keeps quiescent current under 2.5 µA in no-load standby conditions. Their 3.4 V to 42 V input voltage range makes them ideal for automotive and industrial applications. The internal 5 A switches can deliver up to 3.5 A of continuous output current to voltages as low as 0.97 V. The LT8610A/ABs’s Burst Mode operation offers ultralow quiescent current, making it well suited for applications such as automotive “always-on” systems, which is needed to extend operating battery life. The LT8610A/AB’s unique design maintains a minimum dropout voltage of only 200 mV at 1 A under all conditions, enabling it to excel in scenarios such as automotive cold-crank. Furthermore, a fast minimum on-time of only 30 ns enables 2 MHz constant frequency switching from a 16 V input to a 1.0 V output, so designers can optimize efficiency while avoiding critical noise-sensitive frequency bands. The LT8610A/AB’s 16-lead thermally enhanced MSOP package and high switching frequency keeps external inductors and capacitors small, providing a compact thermally efficient footprint. The LT8610AB offers higher efficiency at very light loads <0.5 mA when compared to the LT8610A, but this does result in slightly higher output ripple.

The LT8610A and LT8610AB share all of the performance and features of the LT8610 with the following improvements. First, they deliver 3.5 A of continuous output current, in lieu of the LT8610’s 2.5 A capability. Secondly, their minimum on-time has been reduced from 50 ns to 30 ns, enabling 16 V to 1 V step-down conversion @ 2 MHz, compared to 1.8 V for the standard LT8610. All other electrical parameters are identical to the standard LT8610.

The LT8610AEMSE and LT8610ABEMSE are packaged in thermally enhanced MSOP-16 packages and are priced starting at $3.75 each. An industrial temperature version, the LT8610AIMSE and LT8610ABIMSE are tested and guaranteed to operate from a -40 °C to 125 °C operating junction temperature and are priced starting at $4.13 each. Automotive temperature versions, the LT8610AHMSE and LT8610ABHMSE are tested and guaranteed to operate from a -40 °C to 150 °C operating junction temperature and are priced starting at $4.38 each. All pricing is for 1,000-piece quantities and all versions are available from stock.
