EMC Symposium New Product Preview

More than 200 companies will exhibit products and services Aug. 19-21 during the 2003 IEEE International Symposium on Electromagnetic Compatibility at the John B. Hynes Veterans Memorial Convention Center in Boston. The exhibit will be open from 9:30 a.m. to 5:30 p.m. on Tuesday and Wednesday (Aug. 20) and from 9:30 a.m. to 3 p.m. on Thursday.

During the symposium, industry experts from around the world will present technical papers and sessions, workshops, and tutorials. The program begins on Monday (Aug. 18) with several workshops and IEEE committee meetings. After a three-day break for the technical sessions, four additional workshops on Friday (Aug. 22) close out the symposium.

The traditional five-track technical program begins Tuesday and continues through Thursday. The schedule includes nearly 200 technical papers on many aspects of EMC along with open-format sessions so participants can have less formal discussions with authors.

Previews of many products that will be exhibited at the symposium are highlighted in this article. To register for the symposium and reserve hotel accommodations, contact the 2003 IEEE EMC Symposium at 732-562-3870 or www.emc2003.org. A schedule of technical sessions and workshops can be found in the July issue of EE and on our website at www.evaluationengineering.com/archive/articles/0703symposium.htm.

Snap-On Suppressors

Two Snap-It Suppression Assemblies to accommodate larger cable diameters and wire harnesses are available in two materials. The cores, designed to fit 0.750″ and 1.000″ dia cables, come in MnZn 31 and NIZn 44. Plastic cases molded from polypropylene with a UL 94-V0 flammability rating hold the suppressor cores and allow snap-on installation. Fair-Rite, www.rsleads.com/308ee-191

Horn Antenna

The Model 3164-03 Horn Antenna has two orthogonal-placed feeds for simultaneously measuring horizontal and vertical polarizations. Polarization can be linear or circular. Cross polarization isolation is better than 25 dB, and the useable frequency ranges from 400 MHz to 6 GHz. The antenna accepts 200-W maximum continuous power input. ETS-Lindgren, www.rsleads.com/308ee-190

Broadband Preamplifiers

A line of preamplifiers, frequency matched to test requirements, is designed to improve overall system sensitivity by at least 26 dB. Each preamplifier comes with a DC-regulated power source, or you can power the preamplifier with an external battery. A low-voltage indicator monitors the supply voltage. Eight models are available ranging from 20 MHz to 40 GHz. A. H. Systems, www.rsleads.com/308ee-187

Harmonics and Flicker Tester

The PC-based MXCTS Test System, based on the company’s MX AC power system platform, supports single- and three-phase IEC 61000-3-11 flicker and IEC 61000-3-12 harmonics test standards for high-power AC products. The CTSMX software residing on the PC platform handles test-standard implementation details. Test reports, including tabular harmonics data and graphical displays, are generated using MS Word™. The system also accommodates interharmonics, a requirement driven by IEC 61000-4-7. California Instruments, www.rsleads.com/308ee-189

Broadband Microwave Amplifiers

The AR Model 5S4G11 and Model 1S4G11 Microwave Amplifiers provide a bandwidth of 4.0 to 10.6 GHz. The self-contained, air-cooled 5S4G11 delivers a minimum of 5 W of RF power when used with a sweep generator. The power output at 1-dB compression is 6 W nominal and 4.5 W minimum, gain 37 dB at the maximum setting, and harmonic distortion -20 dBc maximum at 5 W. The 1S4G11 has a minimum of 1 W of RF power when used with a sweep generator. Amplifier Research, www.rsleads.com/308ee-188

EMI/RFI Window Screens

EMI/RFI Window Screens for applications such as monitors consist of a very fine woven wire cloth, typically stainless steel 100 × 100 mesh with a 0.001″ wire diameter. For some applications, the wires are coated to give them a blackened surface to improve light transmission and reduce reflection. The telecommunications industry uses small windows of approximately 1″ × 2″. The network computer industry generally requires windows up to 6″ × 12″. Orion Industries, www.rsleads.com/308ee-196

D-Connector Gaskets

A series of D-connector gaskets for grounding and RFI shielding features a low-compression-set silicone sponge core. A conductive outer layer is coextruded and provides low-contact resistance over an inner sponge core. The gaskets fit most nine- through 50-pin layouts and offer rear- or front-mount capabilities using optional adhesive assembly strips. Custom configurations are available. Vanguard Products, www.rsleads.com/308ee-194

Power Line Filters

A line of 48-VDC power line filters is designed for input lines, power supplies, and power distribution systems for use in the telecommunications, industrial measuring equipment, and industrial controls markets. The filters feature a wide scope of attenuation characteristics and have current ratings from 6 A to 260 A. The voltage rating is 250 VAC maximum. Filtering is effective from 100 kHz to 3 MHz with proper installation. Spectrum Control, www.rsleads.com/308ee-193

Multiturn Sleeve Snap

A high-impedance sleeve snap for round cables attenuates frequencies up to 1 GHz and features a serpentine cable-threading capability. Increasing the number of times the circuit passes through the ferrite core lengthens the magnetic path. The gain is the square of the number of turns. The one-hole style allows two passes of up to 0.365″ dia cable or three passes of up to 0.243″ cable. The two-hole design accommodates two passes of up to 0.335″ dia cable. The three-hole sleeve houses three passes of up to 0.203″ dia cable. Each unit comes in gray or black and with an optional adhesive foam-pad mounting base. FerriShield, www.rsleads.com/308ee-192

Modular Simulator

Modula is an open-architecture system that simulates electromagnetic interference effects and performs immunity tests to international, national, and in-house standards. All system components are defined as function units, such as a pulse generator or a high-voltage source. Interbus connections enable external system components to be included in the same manner as modules housed in the system casing itself. Ethernet (TCP/IP protocol) is used to connect to a PC for networking purposes, and IEC-compatible connectors are used on the equipment and test-object side. The operating system software has been developed using the LabVIEW standard running under Windows. Schaffner EMC, www.rsleads.com/308ee-197

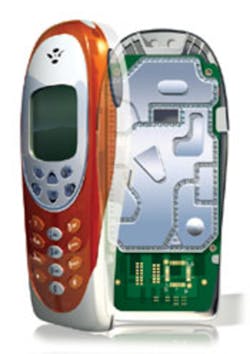

Board-Level Shielding

snapSHOT™ is an EMI board-level, multicavity, metallized, thermoformed plastic shield. It is electrically insulative on the inside and attaches to a PCB using the company’s patented snap-attachment mechanism. The shield, manufactured from a high-temperature, lightweight plastic material, comes in bulk, trays, or tape-and-reel and can be installed using manual, semi-automated, or fully automated equipment. W.L. Gore & Associates, www.rsleads.com/308ee-201

Strip Gaskets

Quick-Strip Gaskets are manufactured using Quick-Shield stainless steel spiral and an adhesive-backed neoprene sponge elastomer. The surface-mounted gaskets offer shielding of >95 dB in continuous lengths and come in low (1.5-lb) and moderate (10-lb) resiliencies in 0.063″, 0.094″, 0.125″, and 0.187″ diameters and elastomer widths of 0.250″ and 0.375″. Custom sizes also are available. Spira Manufacturing, www.rsleads.com/308ee-254

RF Immunity System Upgrade

The family of 50-W, 3U-high amplifiers includes the 0.8- to 4.2-GHz Model 5163, the 0.7- to 3.0-GHz Model 5143, the 1.0- to 3.0-GHz Model 5173, the 0.8- to 2.5-GHz Model 5152, and the 0.8- to 2.0-GHz Model 5022A. All these amplifiers have minimum linear power of 40 W at 1-dB output compression and a minimum small signal gain of +48 dB. OPHIR_RF, www.rsleads.com/308ee-202

Plated Fabric Gaskets

The VersaClad® VC-100 Gaskets use a silver-monel-plated woven nylon ripstop cladding and polyurethane foam core technology to provide a surface resistivity of 0.25 W/square and an average shielding effectiveness of 92.6 dB for frequencies of 20 MHz to 18 GHz. Three foam options are available: resilient UL 94-HB, flame-retardant UL 94-V0, and bromine-free UL 94-V0. More than 120 shapes and sizes include rectangular, C-fold, D-shape, L-shape, and I/O gaskets. Attachment methods range from mechanical self-attaching, clip, and push-rivet to pressure-sensitive adhesive backing. Schlegel Systems, www.rsleads.com/308ee-200

Low-Profile Choke Coil

The DLP11 Common-Mode Choke Coil Series uses thin-film and ferrite material technology to create an EMI filtering solution for high-speed differential-mode signal transmissions. They are available with impedance values of 90, 120, 160, or 200 W at 100 MHz and in a 1.25 × 1.0 × 0.082 mm package. The series is designed for filtering high-speed interfaces such as USB 2.0 and IEEE 1394. Murata Electronics, www.rsleads.com/308ee-203

MIL-STD-46IE Measurement Capability

The EMC46IE Precompliance Measurement System, including the company’s 401B Spectrum Analyzer and software to operate on any Windows-based PC, performs MIL-STD-46IE radiated measurements. The antenna factors for many EMC measurement antennas are stored in the software or can be entered from the PC keyboard. A 26-dB gain preamplifier with the system interfaces to most antennas, and an SMA cable connects the preamplifier output to the input of the spectrum analyzer. The software compensates for the antenna factor, preamplifier gain, and cable loss. The results are measurements directly in dBµV/m. Limit lines for all MIL-STD-461E radiated emission standards can be displayed. Bantam Instruments, www.rsleads.com/308ee-195

Vent Panels

MaxAir™ Vent Panels are constructed of nickel/copper-plated polymeric honeycomb with a compressible conductive foam band. Compared to traditional honeycomb vent panels, the frameless, dent-resistant vents permit 10% to 20% more useable airflow throughout the surface. The panels can be machined to accommodate special features such as recess and rabbit cuts and come standard in ¼” and 1/8″ cell sizes and ¼” and ½” thicknesses. Other thicknesses are available on request. Laird Technologies, www.rsleads.com/308ee-199

Surge Generator

The MIG0603BEL GR-1089 Test System provides two- and four-wire tip and ring and AC power port surges of ISSUE 2. It expands to support 12-pair testing and may be integrated with ITU, ETSI, IEC, and FCC part 68 surge solutions. A five-terminal surge solution for the new ISSUE 3 specification can be added. HV Technologies, www.rsleads.com/308ee-198

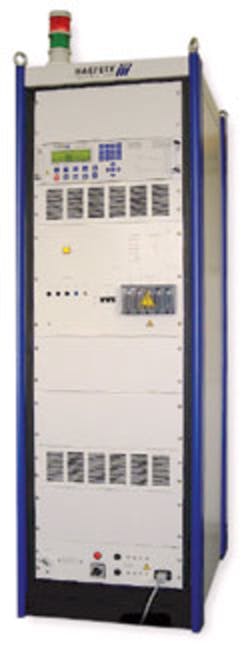

Combination Wave Test System

The PSURGE 20430 Combination Wave Test System provides up to 20 kV in open circuit and 10 kA in short circuit to meet the needs of UL 1449 permanently connected leads and ANSI C62.41 up to Category C3. The tester, available in one- and three-phase models, includes an integrated CDN with automatic coupling-path switching for superimposing combination-wave impulses onto three-phase power lines up to 32-A test current. The company’s WinFEAT&R control and reporting software package enables fully automated operation. Haefely North America, www.rsleads.com/308ee-253

Return to EE Home Page

Published by EE-Evaluation Engineering
All contents © 2003 Nelson Publishing Inc.
No reprint, distribution, or reuse in any medium is permitted
without the express written consent of the publisher.

August 2003
