Amplifiers for Radiated Susceptibility Testing

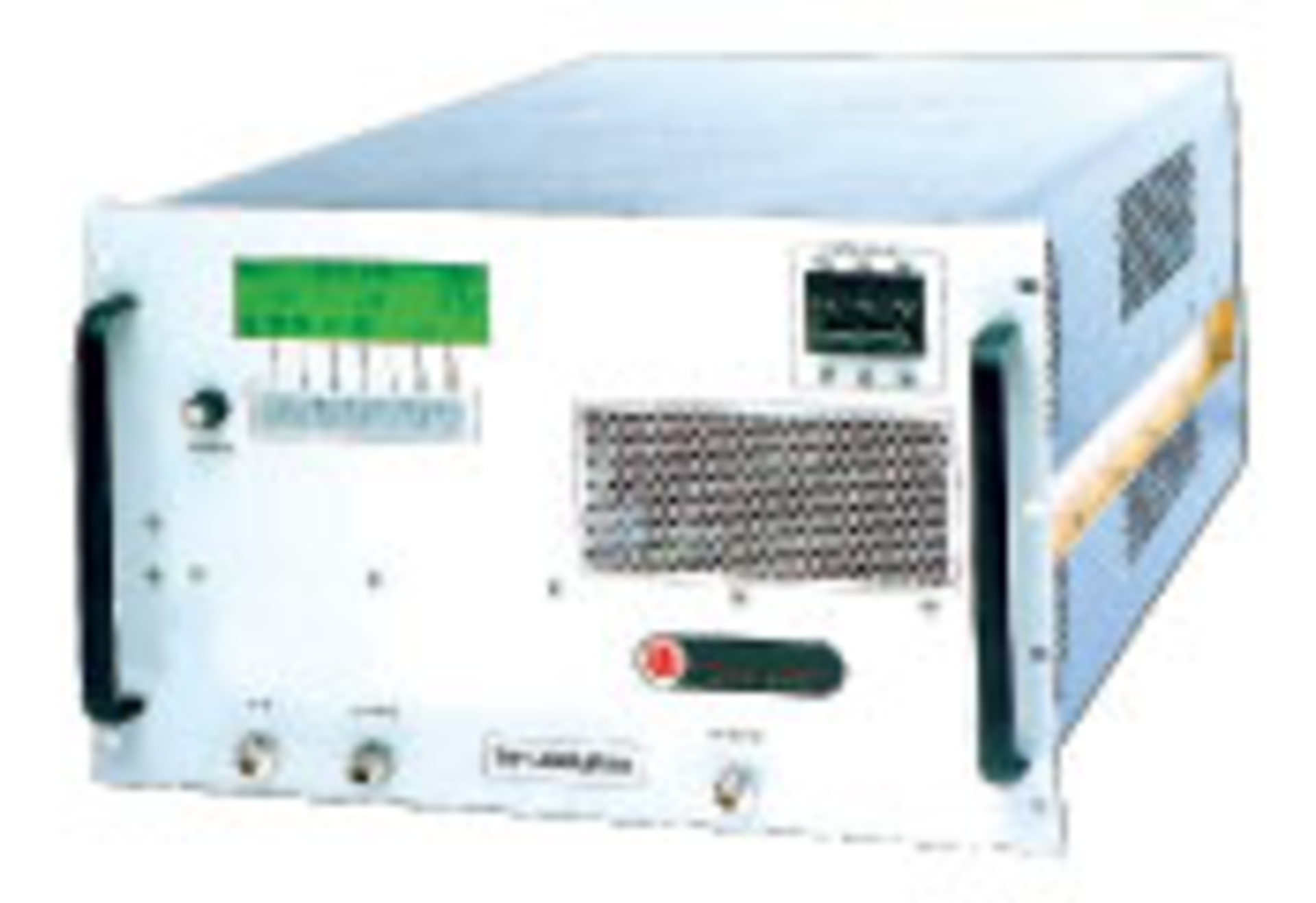

The ST61-50/ST81-50 Series Amplifier provides a minimum of 50 W of CW power for frequency ranges from 0.8 to 6 GHz or 0.8 to 8.0 GHz in various bands. Typical bands are 0.8 to 2 GHz, 2 to 3.5 GHz, and 3.5 to 6.0 GHz and 6.0 to 8.0 GHz for the ST81-50 model. This type of amplifier is available at 10-, 20-, 25-, and 50-W power levels. The single-drawer units are 10.5” H (depending on the power level and options) x 19” W x 25.25” D. The design is suitable for the high power requirements of precompliance testing, EMC testing, and lab and test installations. Other frequency bands and higher power models are available.

Instruments for Industry
