Broadband Amplifier

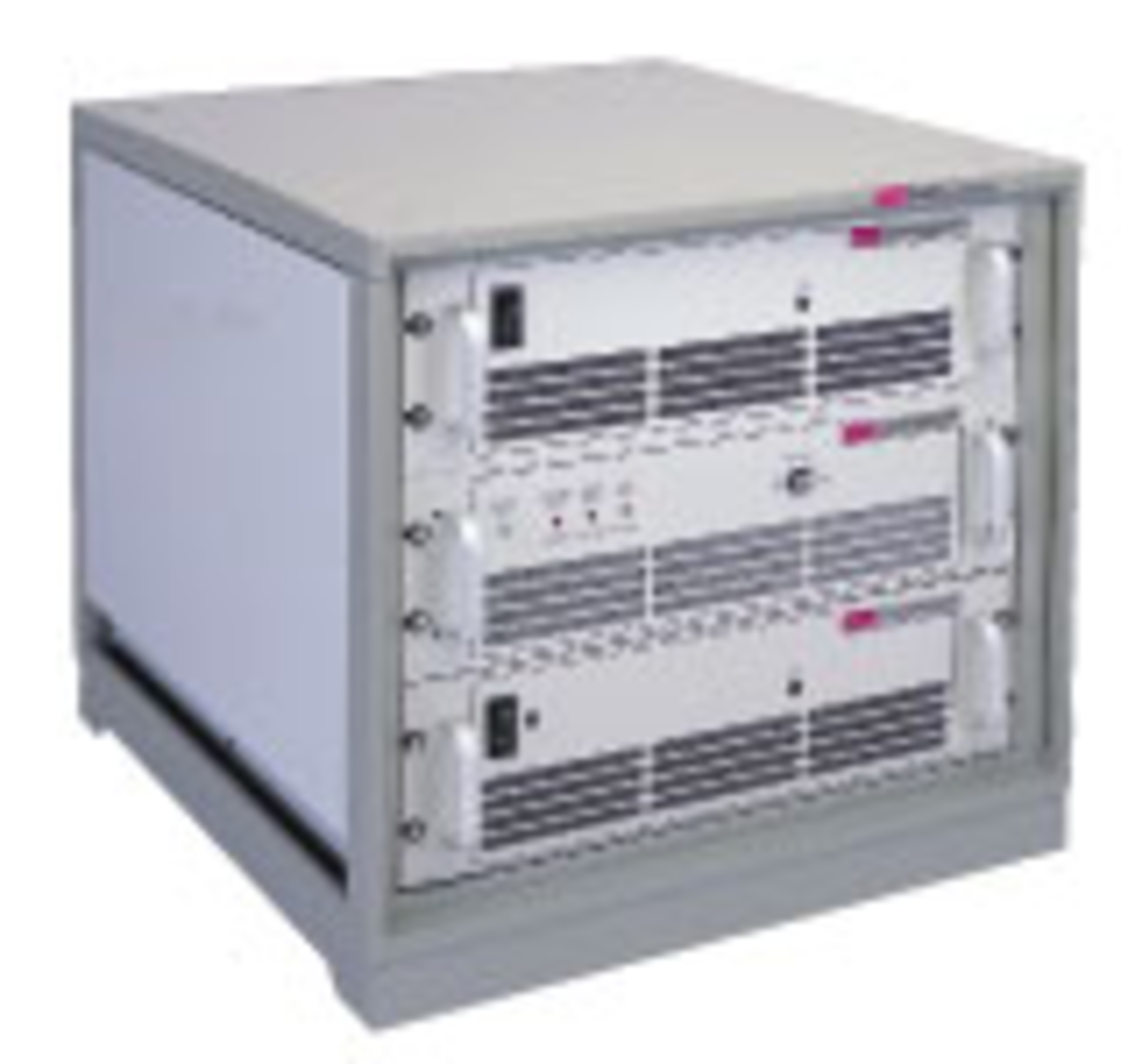

The 5213 1,000-W Amplifier covers the 200-MHz to 1,000-MHz frequency range and utilizes Class A/AB linear power devices providing a high third-order intercept point, large gain, and a wide dynamic range. RF input signal formats include CW/AM/FM/PM and pulse. The amplifier, controlled by front-panel keypads or remotely by RS-232/Ethernet or IEEE 488, is protected against VSWR, thermal overload, and over-current and -voltage. The 50-Ω input and output impedances are supported with Type-N input and 7/16-DIN output connectors.

Ophir RF
