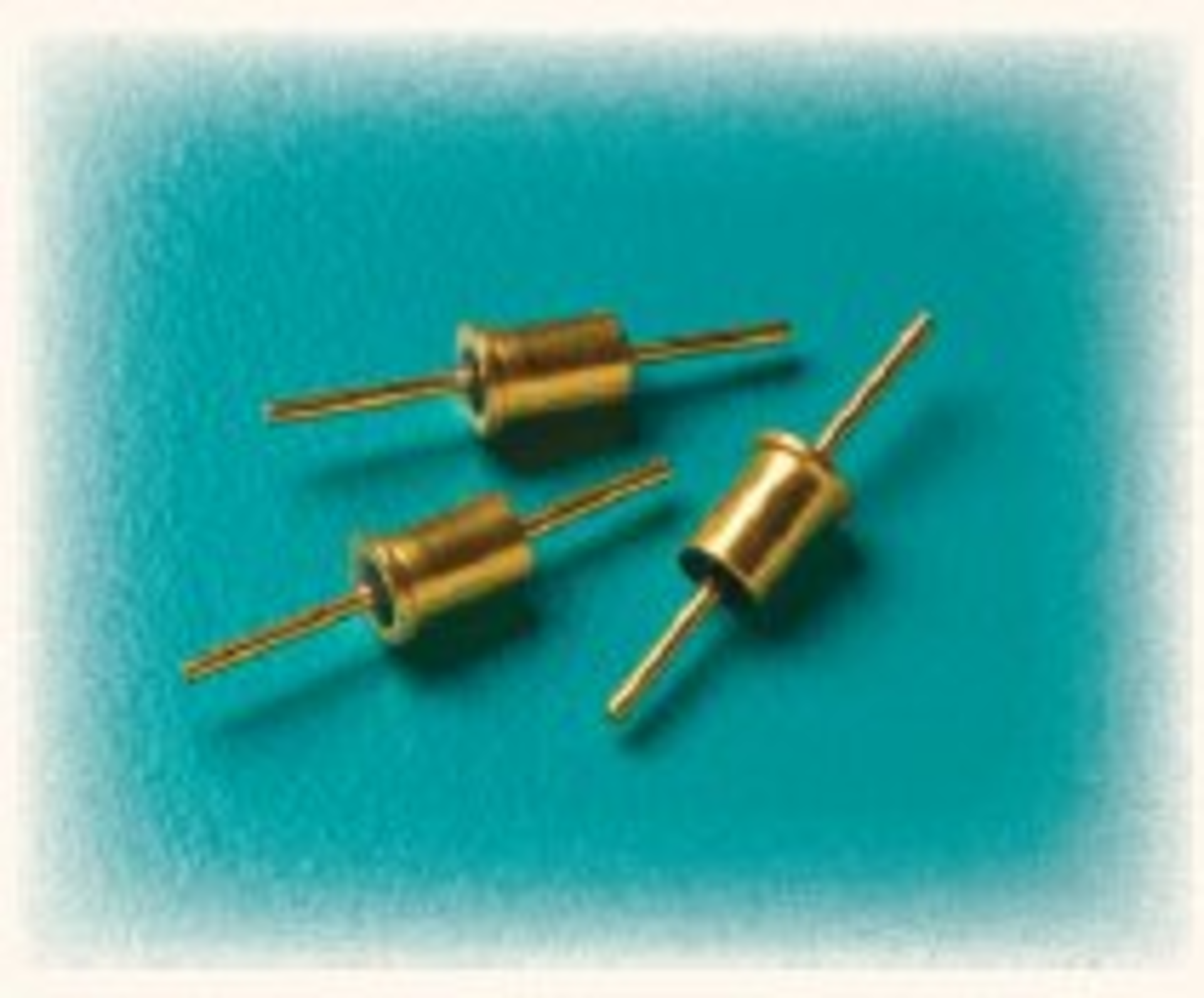

Miniature L Circuit Filter

A new feed-through hermetically sealed solder-in L circuit filter provides filtering from 10 kHz to >10 GHz with capacitance values from 10 pF to 0.033 µF and a 10-A current rating. Voltage ratings range from 50 VDC to 200 VDC. The filter’s case size measures 0.156” OD x 0.128” ID with body length of 0.200” and a total overall length of 0.715”.

The RoHS-compliant filter has a rugged monolithic capacitor construction for use in harsh environments. Customized versions including a reverse seal and special lead length and end termination options are available.

Spectrum Advanced Specialty Products
