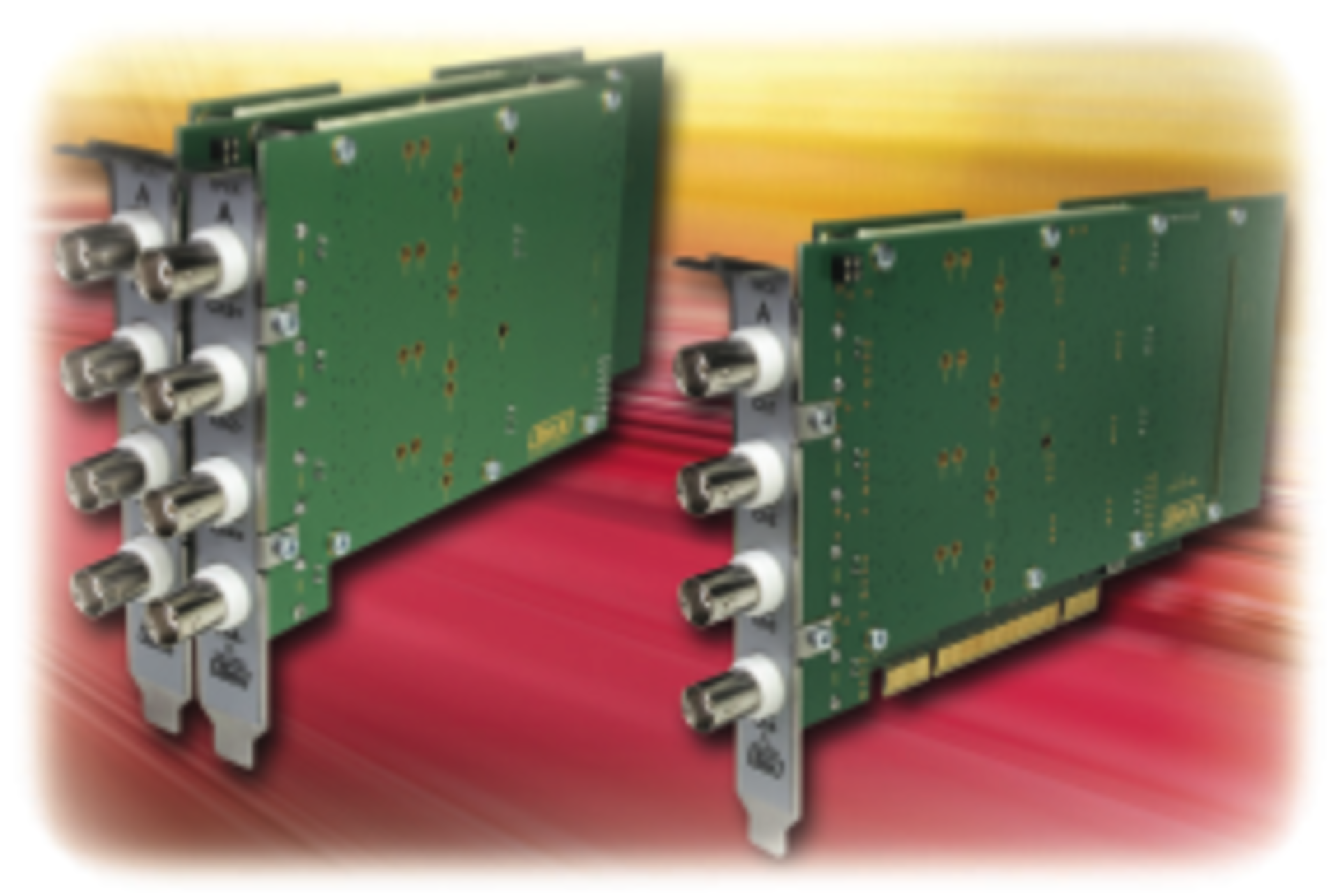

The single-width PCI TPCX-24014 and TPCX-12014 Transient Recorders offer 240-MS/s or 120-MS/s sampling speeds at 14-bit or 16-bit vertical resolution and vertical and offset accuracy specified at ±0.1% of full scale. The modules have four single-ended channels that can be switched into two fully differential channels.
The LAN-controlled recorders support a memory length of 32 Mpoints/channel, 128 Mpoints/channel optional; an input voltage range up to 100 V and an offset range of up to FSR on all settings; and 50-Ω and 1-MΩ inputs. DAQ modes include scope for configuration of the acquisition parameters; continuous for recording, writing, or streaming data onto the internal hard disk at a 50-MB/s maximum transfer rate with no data loss or dead times; and block, which divides the on-board DAQ memory into absolute or relative time-stamped blocks.
