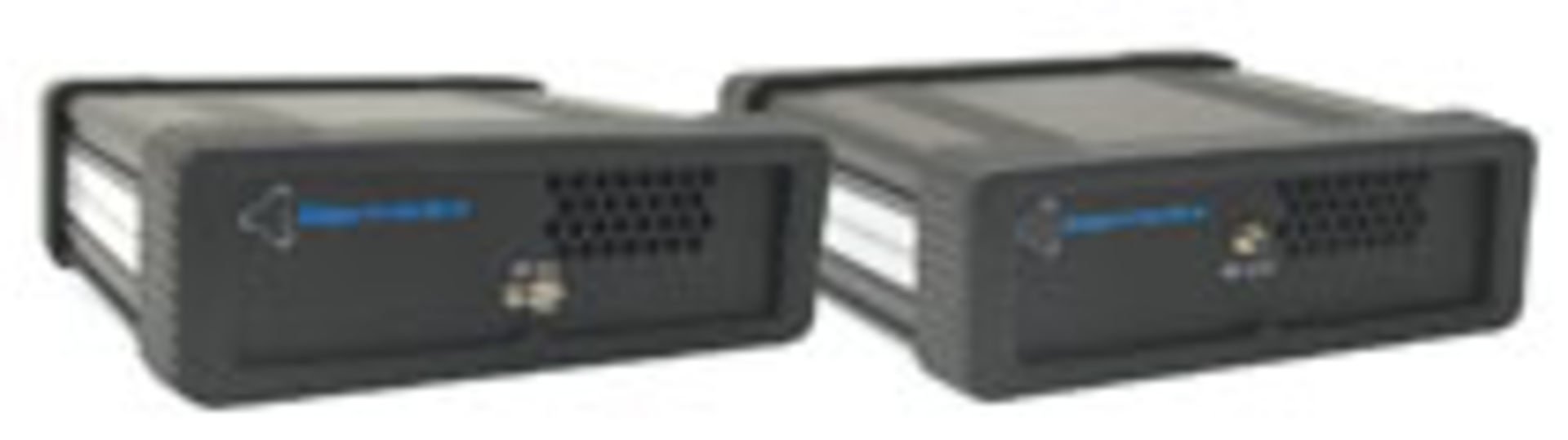

The GT-1020A and GT-1040A are instrument-grade microwave power amplifiers that cover 100 MHz to 20 GHz and 10 MHz to 40 GHz, respectively, with flat frequency response, low noise figure, and low harmonics. The amplifiers, which incorporate broadband MMIC-based architecture, typically provide 0.5 W (+27 dBm) at 20 GHz and 0.25 W (+24 dBm) at 40 GHz with >25 dB gain and <6 dB noise figure. Gain flatness is ±2.5 dB over the full frequency range.
The compact and lightweight amplifiers can be used in R&D lab applications and manufacturing automated test systems to overcome power losses from a signal generator or whenever higher power is required. Both instruments are compatible with the company’s 20-GHz and 40-GHz microwave signal generators. The amplifiers also feature high reverse isolation. Giga-tronics
