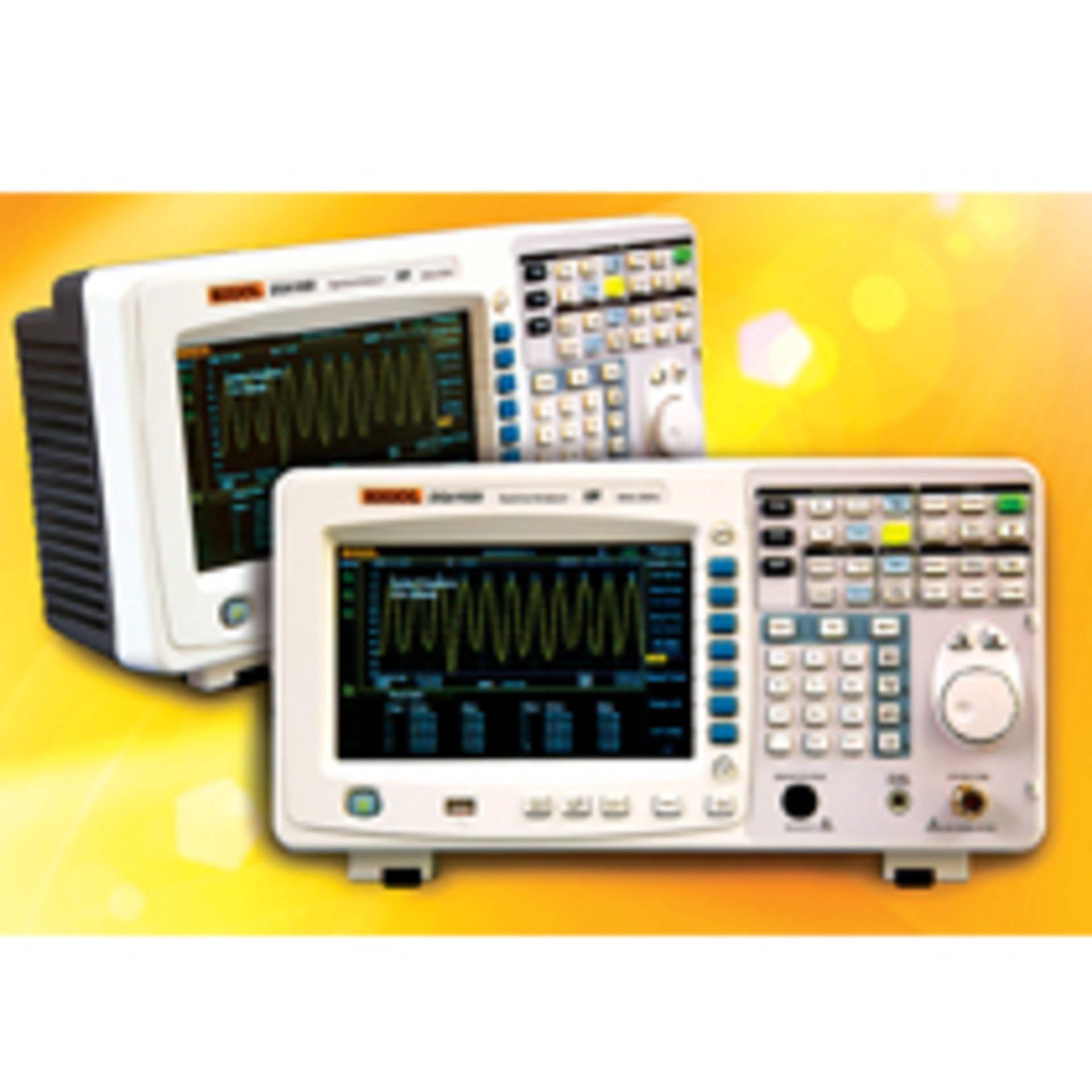

A new line of compact 2-GHz and 3-GHz spectrum analyzers incorporates the DSA1000A Series, designed with high-performance testing and measurement capabilities; and the DSA1000 Series for basic measurement. Features include an 8.5” widescreen TFT color display, bandwidth ranging from 9 kHz to 3 GHz with a minimum resolution bandwidth of 10 Hz, and phase noise typically -88 dBc/Hz at 10-kHz offset.
The analyzers also have a displayed average noise level of -148 dBm and an overall uncertainty factor <1 dB and are available with 1 GB of internal storage. Interface options consist of a USB host/device, VGA, LAN interface (LXI-C compliant), and PictBridge printing. An optional USB-GPIB adapter also is available, and the new rack-mount kit enables integration into existing system infrastructures.
