    System supports SPI testing capabilities

    June 20, 2011
    Evaluation Engineering
    1107 Ppicks192

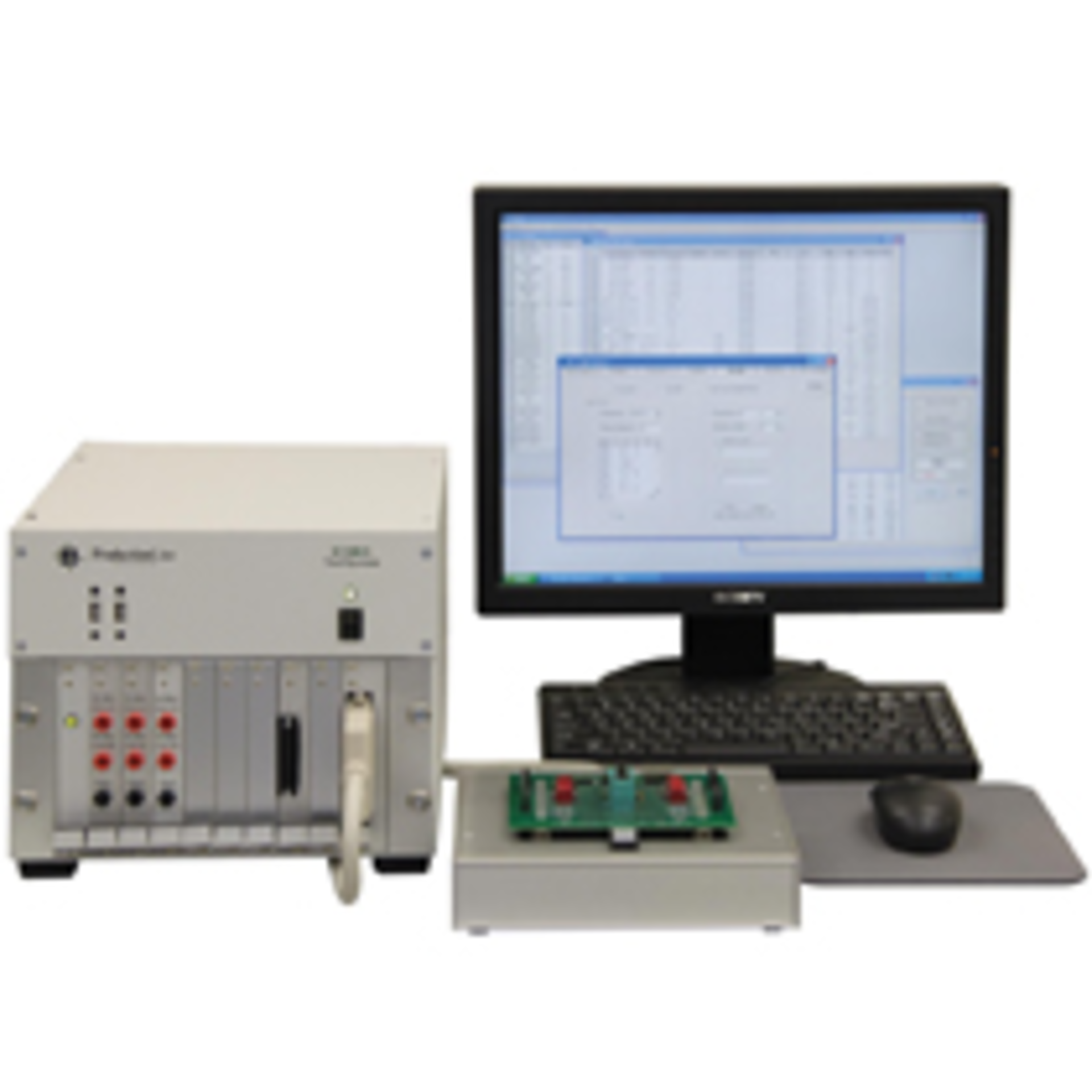

    The IC100-S Mixed-Signal Tester incorporates an I²C serial interface to 3.4 MHz and a SPI serial interface to 20 MHz and performs wafer probe and final test, incoming inspection, device characterization, failure analysis, reliability testing, and general-purpose lab work. It features up to 16 SMUs, 16 digital drivers with programmable VIH, 16 digital receivers with programmable Vt, 24-bit ADC, 32 independent loadboard relays, and five user-defined 16-bit DACs with ±10-V outputs.

    The IC100-S includes fill-in-the-blanks software for intuitive test development, curve-tracer software, summary sheets, datalogs, a prober/handler interface, an integrated computer, and a lightweight test head. Every signal has an internal relay that automatically opens and closes so multiple instruments may be shorted together at the DUT without interfering with each other.

    ProductionLine Testers
