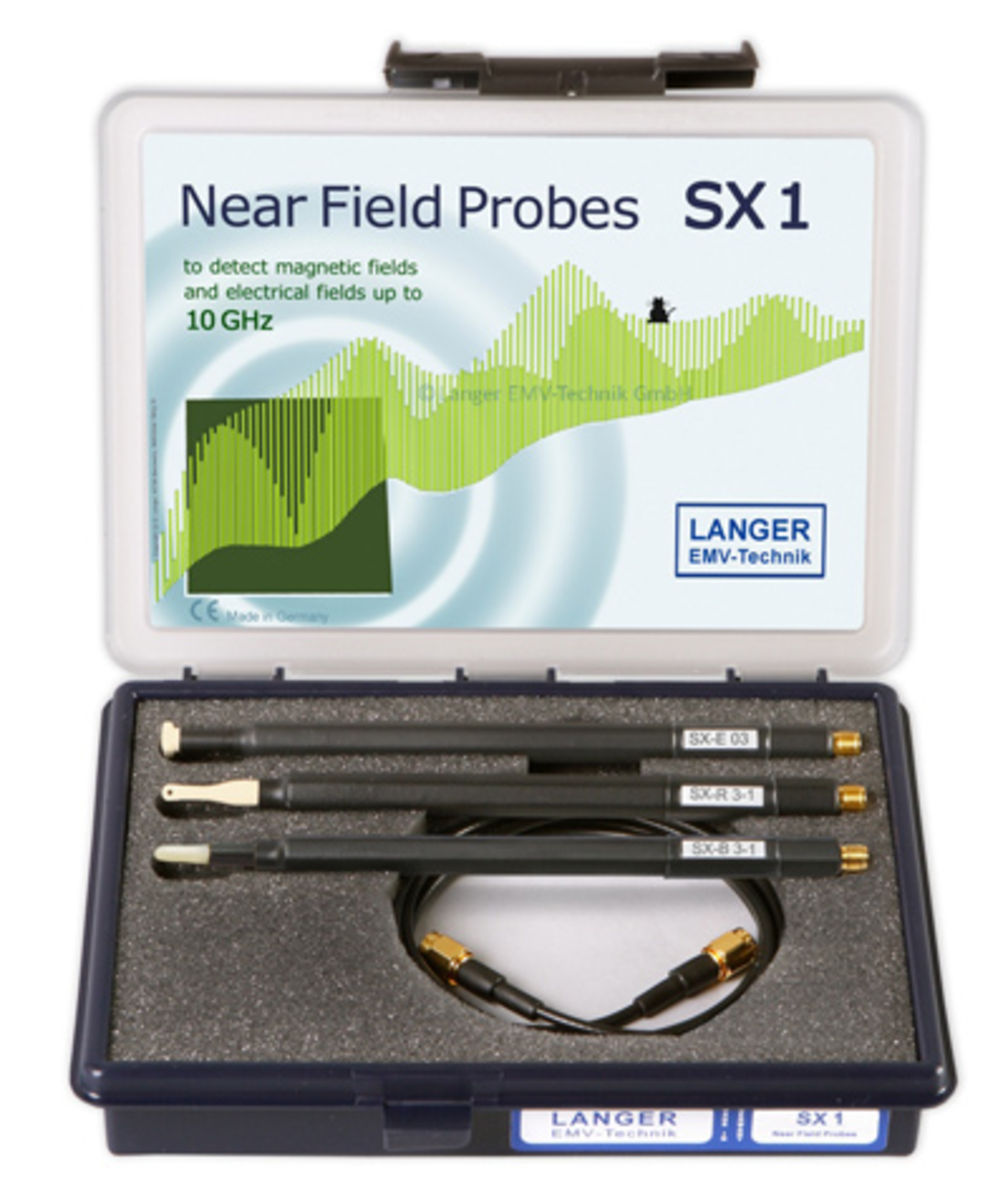

The SX 1 near-field probe set includes a new member: the SX-B 3-1 H-field probe for frequencies between 1 GHz and 3 GHz, whose measurement coil is arranged orthogonally to the probe shaft and thus rests directly on the surface of the PCB when the probe head is held vertically.
Also included in the set are the SX-E 03, an E-field probe for frequencies between 1 GHz and 10 GHz with an electrode on the underside of the probe head sized approximately 4 x 4 mm; and the SX-R 3-1, an H-field probe for frequencies between 1 GHz and 10 GHz with a very small probe head to identify even the smallest components as a source of interference. Langer EMV-Technik
The Elgar Terrestrial Solar Array Simulator (TerraSAS) line of standalone photovoltaic simulators now includes the Embedded TerraSAS (ETS). Users can now test isolated and nonisolated string inverters with voltages up to 1,000 VDC and currents up to 15 A, resulting in a 50% increase in output power compared with the prior 1000X ETS model.
The new ETS1000Y is available in three configurations: 5 kW, 1,000 VDC at 5 A; 10 kW, 1,000 VDC at 10 A; and 15 kW, 1,000 VDC at 15 A. AMETEK Programmable Power
A series of compact DC power supplies offers LAN and USB interfaces and accurate, reliable power for testing and validating designs. The E36100 Series adds five new models with up to 100-V or 5-A output to the vendor’s portfolio of bench power supplies.
The E36100 Series’ compact form factor (2U, ¼-rack) saves space on the bench or in a rack. An intuitive on-screen menu system makes it easy for engineers to perform manual tasks quickly, and overvoltage and overcurrent detection helps engineers protect their DUTs. Keysight Technologies
The IoT Gateway Starter Kit combines the vendor’s MXE-202i intelligent IoT gateway based on Intel Atom E3826 processors, the vendor’s EdgePro IoT device and sensor management application, one light sensor and corresponding siren output, the Modbus TCP module, and accessories, all utilizing industrial open-standard protocols with security functions powered by the Intel IoT Gateway.
The kit simplifies device-cloud connection, accelerates IoT application development, and speeds deployment for a wide variety of application environments, such as industrial automation, smart buildings, smart parking systems, and agriculture. ADLINK Technology
By combining four rugged VIBbox-64 enclosures, the vendor has expanded its sound and vibration measurement capabilities to 256 IEPE channels.
All channel data is available at the same time due to the simultaneous operation and parallel configuration for a throughput rate of 51.2 kHz on each channel. This parallel measurement capability assures that vibration data can be analyzed at the same instant in time without the time lapse and phase difference of multiplexed systems. Common applications are acoustic, audio, and vibration testing on large structures such as airplane wings, turbines, trucks, and water vessels. Data Translation
A new driver for NI LabVIEW software, developed with a broad range of signal-acquisition applications in mind, streamlines and simplifies the integration of the vendor’s APx515 analyzer as a robust, high-quality front end to LabVIEW-based measurement environments. Easy addition of the APx515 to a LabVIEW environment is achieved via the DAQ driver’s collection of virtual instruments for initializing the hardware and configuring a range of settings, including input and output channels, sample rates, trigger conditions, signal generation, and signal acquisition. Audio Precision
A new line of coaxial threshold detectors designed for microwave and millimeter wave applications can be used for analyzing radar performance, leveling pulsed signal sources, and making AM noise measurements.
The new threshold detectors consist of three models covering broadband frequency bands from 2 GHz to 40 GHz. Designs incorporate gain stages for higher dynamic range that cover input power levels ranging from -45 dBm to 0 dBm with a typical threshold variation over frequency of ±0.5 dB. One model supports a fixed threshold while the other two models have an adjustable threshold setting. Pasternack
The new TE60 and TB65 Series product lines augment the vendor’s comprehensive power solutions for test-and-measurement applications.
The 60-W TE60 Series external power supply complies with the U.S. Department of Energy’s level VI efficiency requirements and provides enhanced performance to meet strict EMI and EMC parameters, making them suitable for use with handheld test-and-measurement and industrial devices. For internal power, the TB65 models offer up to 90% efficiency and a compact form factor. The 65-W TB65 power supplies are suitable when very high efficiency and EMI and EMC performance are required. SL Power Electronics
Precision differential amplifier
The LTC6363 low-power, high-precision, fully differential amplifier is optimized for driving high-performance 16-, 18- and 20-bit SAR and ∑∆ DCs. Featuring 100-µV maximum input offset voltage and 2.9 nV/√Hz input-referred voltage noise, the LTC6363 consumes just 19 mW on a 10-V supply.
It can convert single-ended signals to differential outputs or be used in a fully differential manner, settling an 8-V (peak-to-peak) differential output step to 18-bit resolution in just 780 ns. Four external resistors set the LTC6363 gain. The LT5400 family of highly matched quad resistors can be used to achieve excellent linearity. Linear Technology
The Model 891 300-kHz bench LCR meter can measure inductance, capacitance, and resistance with 0.05% best impedance accuracy over a fully adjustable test frequency range of 20 Hz to 300 kHz. With a 300-point linear and logarithmic sweep function, bin comparator, and versatile remote-control interfaces, the 891 is suitable for characterizing components in laboratory, quality control, and small-volume production environments.
On the production line, test time can be significantly reduced using multiple-bin comparator sorting functions. These comparator functions allow users to set high and low limits for sorting components within their specifications. B&K Precision
The Yokogawa AQ6375B optical spectrum analyzer, covering wavelengths from 1,200 to 2,400 nm, incorporates a number of new features including a gas purging function, a built-in cut-off filter, data-logging capabilities, a double-speed mode, and support for Windows file sharing.
Wavelength accuracy of ±0.05 nm (1,520 to 1,580 nm) ±0.50 nm (full range), wavelength resolution of 0.05 nm, and a wide close-in dynamic range of 55 dB are accompanied by a wide measurement level range from +20 dBm to -70 dBm. The use of an advanced monochromator design helps to separate spectral signals in close proximity to one another and improves the dynamic range by reducing the influence of stray light.
A data-logging function records analysis results. An optional Windows file-sharing function also is available in addition to the existing Ethernet/GPIB and USB interfaces. Yokogawa Meters & Instruments
DC/DC and AC/DC converters
The C3700 Series delivers up to 1250-W of power and offers nine standard DC input voltage ranges from 18 VDC up to 640 VDC. AC input options are single-phase 115 VAC or 230 VAC (with or without PFC) or three-phase inputs of 3×200, 3×400, and 3×480 VAC. Single outputs are available in 12 standard ranges encompassing 5 VDC to 400 VDC. All outputs are adjustable and fully regulated to 0.2% or better (load) and 0.1% (line). Remote sense is standard.
Efficiency up to 95% is complemented by comprehensive protection circuitry and natural convection cooling, resulting in a standard operating temperature range of -20°C to +75°C (derate 2.5%/°C from +55°C), with an option for -40°C to +75°C. Options include decoupling diodes for parallel/redundant operation, further mechanical ruggedization, inhibit, power fail/DC-OK alarms, system reset, and programming/monitoring functions. Schaefer
The 63200A series provides 6 kW in a 4U-high chassis, built-in digital microprocessors, master/slave parallel control, sine-wave dynamic loading, and a measurement accuracy of 0.015% + 0.015% FS, 0.04% + 0.04% FS, and 0.1% + 0.1% FS accuracy for voltage, current, and power measurement, respectively. A smart master/slave mode control allows you to program the load currents to the master where they are automatically calculated and downloaded to the slave loads. A dynamic frequency sweep also is included with variable frequencies up to 50 kHz.
In addition to common CC, CV, CP, and CR loading modes of conventional loads, the 63200A accepts digital data from DAQ cards or analog data from function generators to allow for complex waveforms. The 63200A also provides an enhanced feature, User Defined Waveform, to simulate the actual current profiles and waveforms. For solar applications, the built-in Maximum Power Tracking function traces the maximum power point for solar panels. Chroma Systems Solutions
The VXT PXIe vector transceiver is a fully calibrated instrument module that provides vector signal generation and analysis in four slots. System developers can create test solutions for power amplifiers (PA) and front-end modules using the VXT’s ready-to-run software and FPGA-accelerated measurements. An open-source PA Reference Solution is available. Features include real-time FFTs that enable high-speed measurements of signal power and adjacent-channel power ratio and a built-in servo routine that quickly reaches an accurate, optimized final setting for PA output level.
Up to four VXT modules can run in a single 18-slot PXI chassis. System developers also can create single-chassis solutions that include one VXT running alongside the manufacturer’s DIO cards and its one-slot PXI VNA. The VXT covers 60 MHz to 6 GHz and provides 160-MHz I/Q bandwidth in both vector signal generation and analysis. With a maximum of +18 dBm output power, the VSG can compensate for signal losses through switch matrices. Keysight Technologies
Precision digital measuring instrument
According to the company, with an accuracy class of 0.0005 (or 5 ppm), the DMP41 is the most precise amplifier for strain gage-based sensor measurements. The DMP41 is available in a 19-inch rack-mount enclosure that enables the instrument’s use in environments with demanding EMC conditions, such as the production floor.
Manufacturers of strain gage-based sensors, such as force, torque, and pressure transducers; load cells; and flow-rate sensors now can use the DMP41 to more precisely calibrate and adjust their sensors during production. Like its predecessor, the DMP41 can be ordered with either two or six measurement channels.
In addition to manual control via the integrated keyboard, users now can control the instrument via a touchscreen or PC. To connect the DMP41 to a PC, users can choose an Ethernet, USB, or RS-232 interface. HBM
