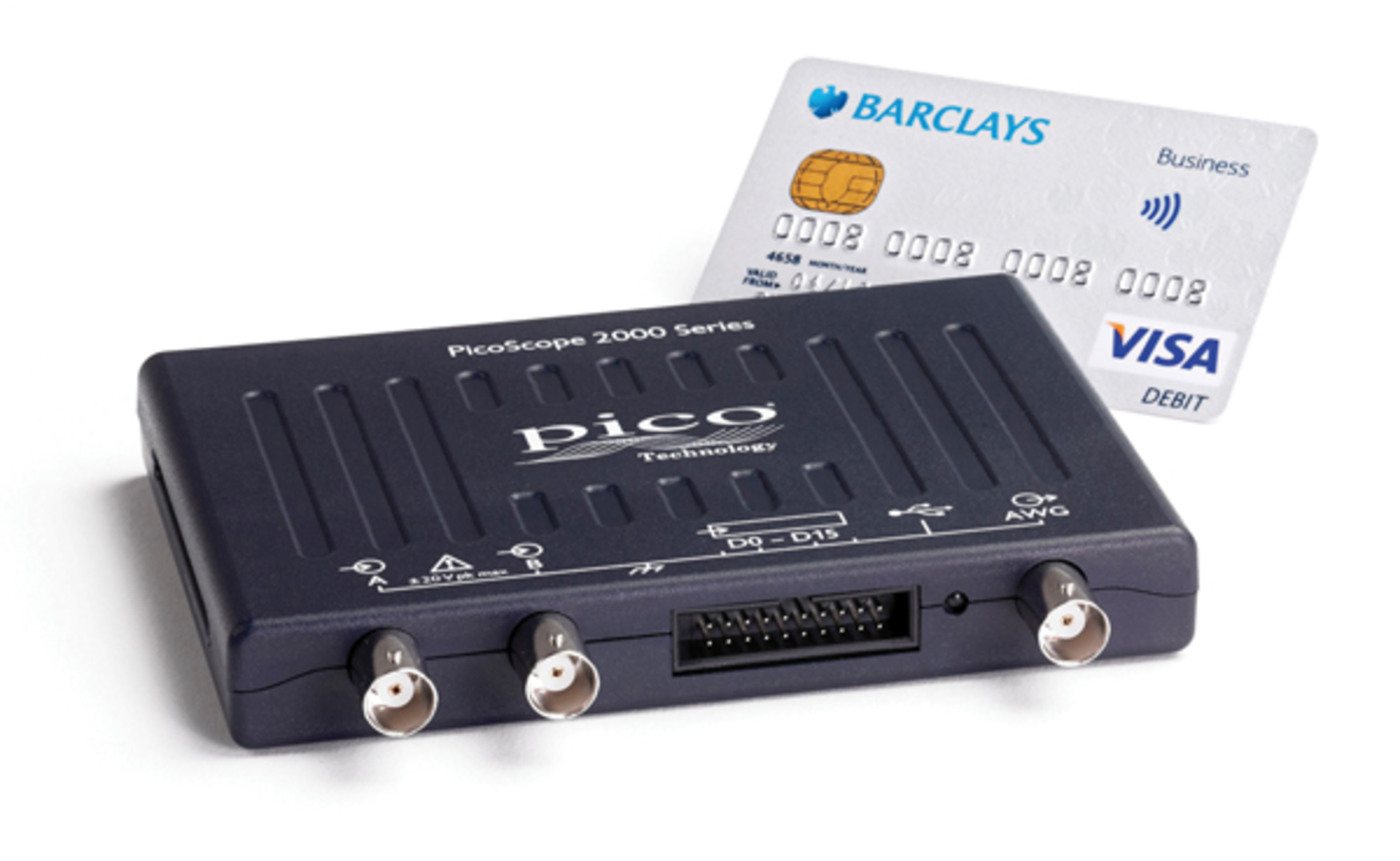

PicoScope two-channel, four-channel, and mixed-signal models have the functionality of an oscilloscope plus a logic analyzer (on MSO models), a spectrum analyzer, a function generator, an arbitrary waveform generator, and a serial bus analyzer with support for 15 protocols included as standard. They are USB-powered and can be easily transported in a laptop bag.
PicoScope 2000A two- and four-channel models are suitable for technicians, trainers, students, and hobbyists doing fault-finding on signals up to 25 MHz. The 2205A MSO has two analog plus 16 digital channels. PicoScope 2000B Series models are equipped with deep buffer memory from 32 to 128 MS and feature bandwidths of 50, 70, or 100 MHz supported with sampling speeds to 1 GS/s and hardware acceleration to deliver more than 80,000 waveforms per second update rates. Pico Technology

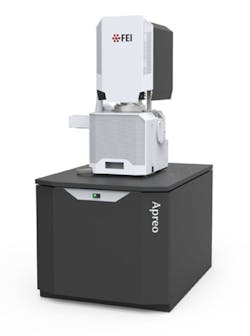

The Apreo scanning electron microscope (SEM) targets applications in fields ranging from materials and life sciences to semiconductors, energy, and chemistry. Due to its proprietary compound final lens design, the Apreo SEM is capable of resolution down to 1.0 nm at 1 kV without the need for beam deceleration—providing high performance on nearly any sample, even if it is tilted or topographic. It offers backscatter detection at the lowest beam currents, at any tilt angle, on sensitive samples, and at TV-rate imaging so materials contrast is strong.
The Apreo software provides user guidance and point-and-click navigation using an in-chamber camera. Multiple samples can be loaded quickly and easily without tools. FEI
The new CTS 6000 Series radio test set, which was unveiled at the Army Missions Solution Summit, incorporates nine test capabilities into a single tester with an easy-to-use, modern touchscreen interface for testing radio communications systems at the factory, at the depot, or in the field.
The CTS 6000 is suitable for use by all branches of the military, TSA, police, fire, private security, and airline personnel requiring secure, reliable radio communications. It provides extensive test capability for any radio system to reduce testing time and cost, maintenance and calibration costs, lifecycle ownership costs, and the number of “no fault found” results. Users can test tactical handsets, amplifiers, antennae, and any other component of a radio system. Astronics Test Systems
The compact T40HS torque transducer is designed for measuring torque at high rotational speeds. It offers high stiffness, is made of light titanium, and ensures maximum precision. Whether in motorsports or the aerospace industry, performance testing of high-speed motors and drives at high rotational speeds is an important factor. The T40HS has a space- and cost-saving torque flange for rotational speeds up to 45,000 rpm for noncontacting transfer of signals.
Thanks to the compact measurement flange design, the T40HS features high torsional stiffness, allowing for dynamic torque measurements. No additional bearings are required, which eliminates maintenance overhead. The compact design of this torque transducer saves space, which makes it easy to integrate into a test bench. HBM
The Model 40-100 high-density PXI relay module, configured with 83 SPDT relays, originally was designed for applications in aerospace and defense requiring a higher density alternative to the vendor’s current 52 SPDT module (Model 40-139). This new relay module is suitable for applications requiring medium-power switching with very high density. It features a 2-A current capacity and voltages to 200 VDC/140 VAC.
Connections for the 40-100 are made via a front panel-mounted 500-pin SEARAY high-density connector. The vendor also offers standard cabling solutions to convert this high-density connector to more standard interfaces such as D connectors and IDC connectors as well as an unterminated option for ease of use. Pickering Interfaces
The MTCS-INT-AB5 sensor board fully integrates the MTCS-CDCAF sensor chip from the JENCOLOR product line. It can serve as an evaluation board for system and application tests and is available as part of a development kit. The board includes memory for saving calibration data and additional user data related to the application as well as an I2C interface. It works as an evaluation system for the MTCS-CDCAF. Typical applications include measuring light colors for multispectral LED arrays and calibrating color on monitors. It also can be used for photometric applications.
As part of a development kit for system and application tests, the sensor board is mounted in a housing and can be controlled via USB. Control files on the PC level take over specifications for the sensor and sensor electronics. Once the development kit has successfully validated an application, the sensor electronics programming can be easily transferred to a microcontroller. MAZeT
The 0805USBN Series common-mode chokes measure 2.0 x 1.2 mm with a maximum height of 0.93 mm. The chokes offer up to 6.5-GHz differential-mode 3-dB cutoff frequency and up to 35-dB common-mode noise attenuation across a wide frequency range for handling noise suppression in super high-speed signal lines such as USB 3.x, HDMI 2.0, HDBaseT, DisplayPort, and DVI. They also are suitable for high-speed differential signal lines such as USB 2.0, IEEE 1394, and LVDS and compatible with the USB Type-C specification 1.0.
The 0805USBN Series provides low DCR (0.11 to 0.63 Ω) and current ratings up to 0.5 A. It is available in eight impedance values. All 0805USBN common-mode chokes are halogen free and feature RoHS-compliant matte tin over nickel over silver-platinum-glass frit terminations. They have an ambient temperature rating of -40°C to +125°C. Coilcraft
