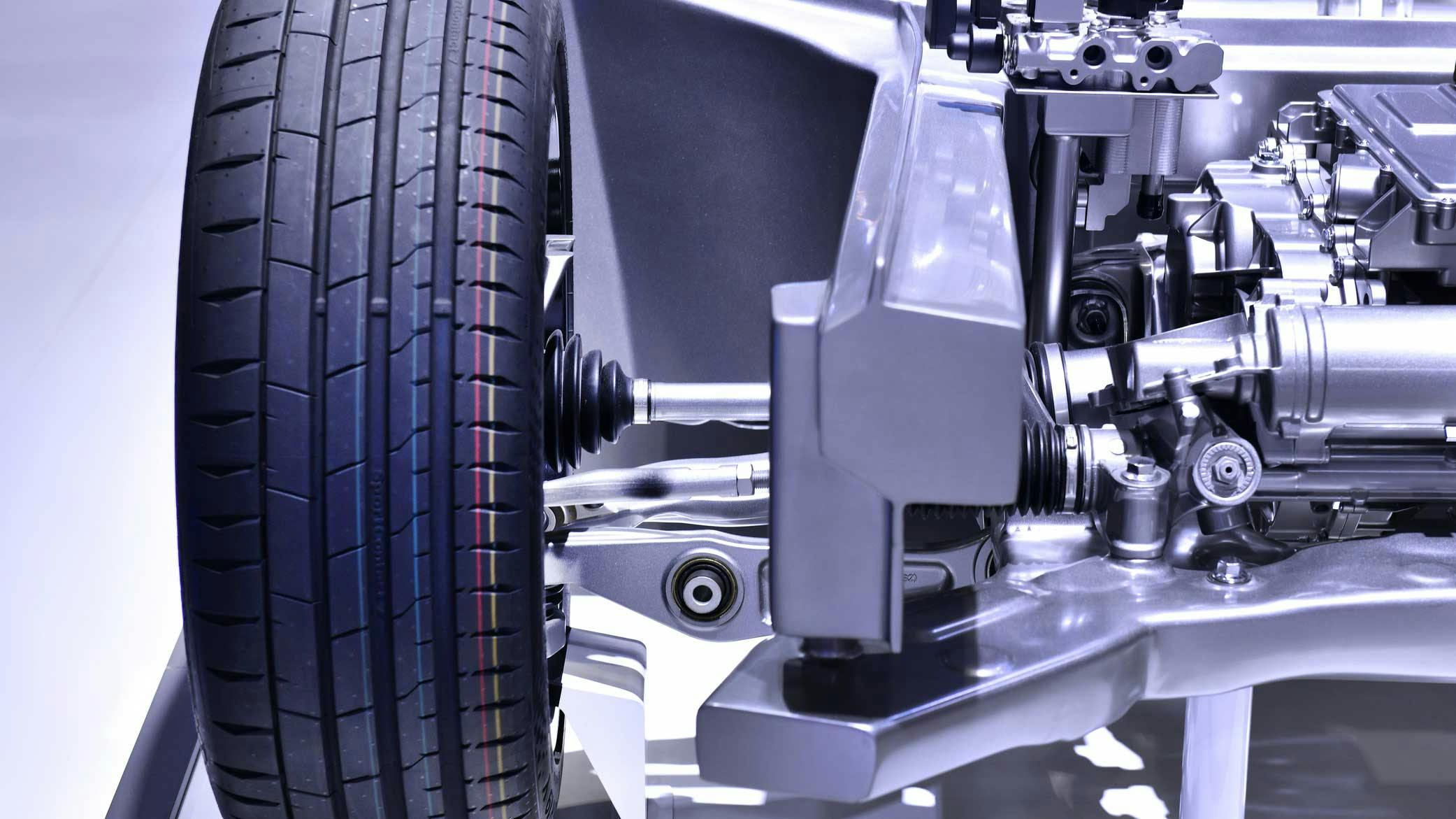

Inverter-Motor Integration Can Deliver Benefits—But It Takes Planning

Facing cost constraints and a need to save weight and minimize costs, designers are increasingly considering integrating inverter and drive units in electric vehicles (EVs). Integration of inverters directly into the electric motor and transmission reduces the size, weight, and wiring complexity of the powertrain. Such designs can also optimize thermal management for the entire system and potentially simplify the EV manufacturing process by streamlining vehicle assembly.

Integrating the traction inverter with the drive unit (motor) is sometimes known as "eAxle" or "powertrain integration." However, offsetting its advantages in efficiency and packaging simplification is a set of complex engineering challenges. In other words, it takes thought and effort to secure those potential advantages (see table).

Thermal-Management Challenges of Inverter-Motor Integration

One of the top challenges in integrated designs is thermal management. The inverter and motor both generate heat, but they have different cooling needs and thermal profiles. Inverters require fast, uniform heat removal from power semiconductors (SiC/GaN), while motors dissipate heat more slowly and from bulkier components (windings, stator).

One option is the use of shared or dual-loop cooling systems. This means, for example, incorporating sintered thermal interfaces and immersive cooling strategies and the use of thermal isolation barriers to avoid cross-heating between units.

In terms of EV integrated drive units, where the inverter, motor, and sometimes gearbox are packaged into a single compact assembly, thermal management is arguably the most critical engineering concern. Key design requirements for thermal management are to maintain optimal temperature ranges for both the power electronics (typically ≤ 175°C for SiC; ≤ 125°C for Si) and motor components (≤ 180 to 200°C for stator windings) under peak load, ambient heat, and limited airflow — without performance loss or thermal fatigue over time.

Another major challenge is heat density mismatch. Inverters (especially SiC-based) generate localized hotspots with high thermal flux (~100 to 300 W/cm²) while motors dissipate heat volumetrically, mostly from stator windings and rotor losses. Therefore, any shared cooling loop must accommodate two very different thermal profiles without favoring one subsystem over the other.

One must also contend with conflicting cooling requirements. Inverter modules need quick, direct conduction cooling from chip to cold plate (low thermal-resistance path) while motors benefit from massive surface area exposure or fluid cooling for bulk heat removal. This may make the use of a dual-loop or a thermally decoupled design unavoidable.

Another obvious challenge comes from space constraints. Integration often eliminates the space between the inverter and motor housing, limiting room for traditional heat sinks, insulators, or coolant channels.  That means cooling must be achieved via innovative compact methods, such as embedded cold plates, heat pipes, or direct-fluid immersion using oil or refrigerant.

Another related challenge is thermal crosstalk (see figure), where heat from one domain (e.g., motor under high torque) can elevate the temperature of the other (the inverter modules), even if they’re lightly loaded. This can be addressed through thermal-isolation layers, independent sensors, and active thermal-management logic.

EVs also have widely varying transient thermal loads. For example, during hard acceleration or regenerative braking, thermal load spikes quickly. An implication is that designers should use materials with high thermal conductivity and low thermal mass, plus phase-change materials or high-speed cooling loops.

Mechanical Packaging and EMI Shielding

Co-packaging the inverter and motor leads to tight spatial constraints, increasing complexity of mounting. Thus, vibration isolation becomes more challenging, and it limits connector routing choices. Plus, the close proximity of high-speed switching devices and motor windings increases risk of electromagnetic interference (EMI).

These challenges can be addressed with integrated shielding and ground plane strategies, the use of advanced materials and PCB stackups for EMI and thermal control, as well as the use of compact packaging for the DC bus, gate drivers, and control boards within EMI-safe zones.

Direct mounting of power modules onto the motor casing for structural and thermal integration can provide both simplicity and robustness. Consider adopting custom busbars with low inductance profiles that handle high currents in minimal space, and elastomeric mounts or other shock-absorbing materials to protect sensitive electronic assemblies.

Electrical Noise and Parasitics

High dv/dt switching in inverters can couple into motor windings, causing common-mode currents, insulation stress, and even bearing degradation. Furthermore, integrating the inverter and motor has the potential to worsen parasitic inductance and capacitance coupling.

However, these challenges can be addressed, in part, by using SiC or GaN devices with controlled switching profiles; adopting shielded cable routing, proper grounding, and common-mode chokes; and carefully co-designing the layout of the inverter and motor winding topology. Also consider implementing a multilayer shielding strategy, adopting conductive coatings on housings, and using internal metal partitions or Faraday cages around switching components.

Where possible, optimize PCB layout to minimize high-frequency current loops and maximize return path symmetry. Adopt differential signaling for control and feedback lines and use double-shielded cables for resolver and sensor signals.

It can also be helpful to integrate filters, e.g. common-mode chokes and EMI filters, near I/O ports and RC snubbers (a resistor and a capacitor connected in series, used to mitigate voltage spikes and ringing caused by inductive loads when a switch opens), or gate resistors, to slow switching edges if needed.

Finally try to establish a single-point ground reference and avoid ground loops with star or equi-potential bonding designs.

Control Complexity

Aside from all of the aforementioned challenges of cohabitation between inverter and motor, the tight integration also suggests the need for co-optimization of motor control and power electronics. That’s because these systems are harder to debug or tune independently.  Furthermore, the dynamic interactions between thermal states, torque demands, and switching limits must be managed in real-time.

Model predictive control (MPC) and adaptive algorithms can help overcome these challenges, as can real-time digital twins or AI-assisted tuning.

Manufacturing, Serviceability, and Reliability

Combining an inverter and motor implies that the assembly will have to be designed with tight tolerance control, especially for thermal and EMI interfaces, let alone the fact that the assembly process may be challenging. Likewise, field service is likely to become more difficult, suggesting that the practical answer is to swap entire units and have them repaired at a depot or back at the factory.

Bear in mind that inverter power electronics and motor components have different failure modes and stress profiles. The whole unit then becomes only as good as its “weakest” element.

These challenges can be addressed by applying modular design philosophies, where some subcomponents (e.g., power modules or PCBs) can still be replaced.

The use of degradation monitoring sensors (vibration, temperature, voltage, etc.) as well as predictive maintenance and fault isolation can also help make the integration of these two systems more successful.
