40 A Supply Powers Large DC Loads on Standard, Single-Phase AC Circuits

Oct. 30, 2013

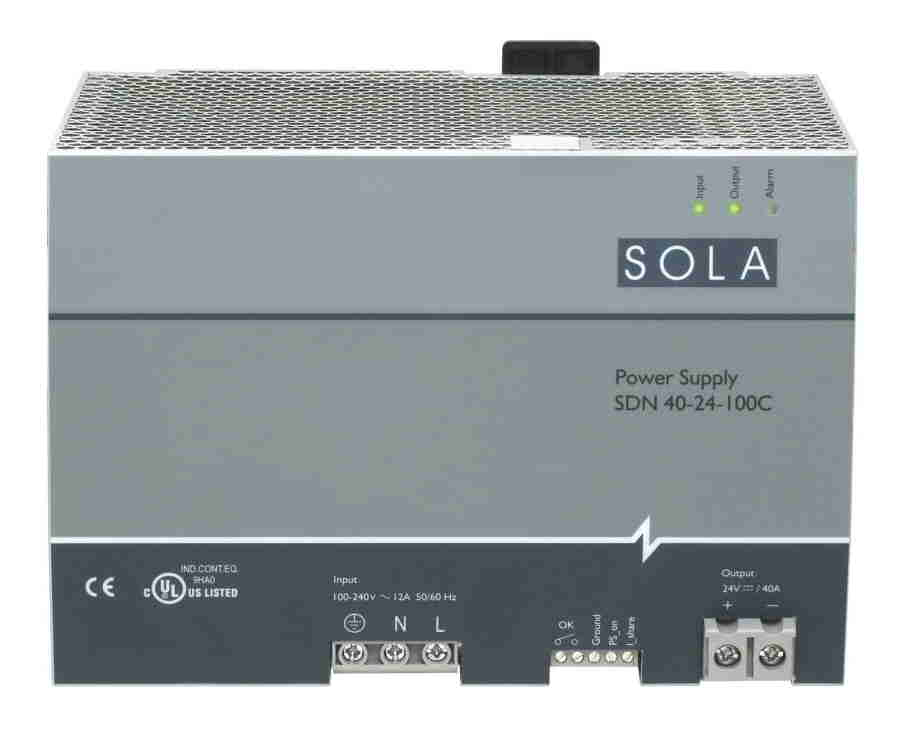

SolaHD has expanded its industry-standard SDN-C power supplies family with the SDN 40-24-100C, a 40A single-phase model that positions the SDN-C Series as one of the broadest available today.

SolaHD has expanded its industry standard SDN-C power supplies family with the SDN 40-24-100C, a 40A single-phase model that positions the SDN-C Series as one of the broadest available today, now ranging from 5A to 40A in both single-phase and three-phase designs, to help customers meet their bulk power supply needs.

Offering many of the legacy features that have made the SDN-C Series a bestseller, the new SDN 40-24-100C maintains a small, easier to integrate footprint with exceptionally high efficiency while delivering the same 40A capacity as the largest SolaHD three-phase model. For manufacturers located in facilities with only single-phase power, this means there is no longer a need to let power supply capacity prevent the running of large industrial loads, such as sorting, conveying and packaging equipment. In addition, the SDN 40-24-100C helps manufacturers add new equipment that can be powered from the existing structure with little or no retrofitting requirements.

Like all SDN-C Series power supplies, the new 40A single-phase model features unique visual diagnostic LEDs to indicate I/O status at a glance. They come equipped with standard screw terminal connections and a rugged, industrial-grade metal outer case thatefficiently dissipates heat, and delivers full power in a wide temperature range from -25°C to +60°C. Their high MTBF translates into superior reliability, longer life and enhanced value to the end-user.

Suggested applications for the SDN 40-24-100C include: industrial machine control, DeviceNet™, process control, conveying equipment, material handling, vending machines, amusement park equipment, and semiconductor fabrication equipment.

SDN-C power supplies are backed by a five-year limited warranty. They are RoHS compliant, fully tested and burned-in at the factory.
