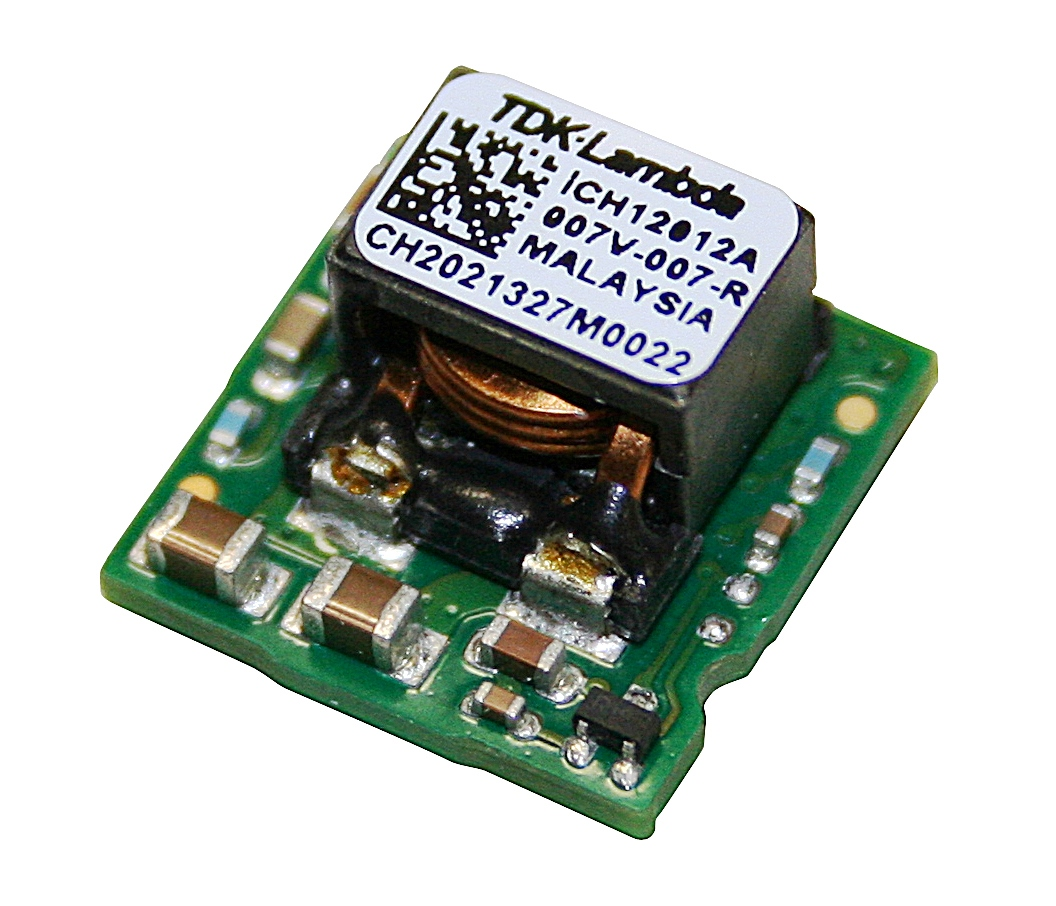

TDK Corp. has introduced the 12 Ampere TDK-Lambda iCH series of POL (Point of Load) non-isolated DC-DC converters. Accepting a wide range input of 4.5 to 14Vdc, the series can operate from either a 5Vdc or 12Vdc bus.
The iCH series can provide output voltages from 0.7 to 8.5V, with efficiencies of up to 97%. A low internal power loss allows the iCH to deliver 12A output current, without forced air cooling, in ambient temperatures in excess of 70°C. The series is designed to meet a wide range of applications, including servers, routers and other Information & Communication Technology (ICT) equipment, semiconductor manufacturing equipment, measuring equipment and general industrial equipment.
The surface mount converters occupy only a 0.23 square inch of board space, measuring 0.48 x 0.48 x 0.335 inches (12.2mm x 12.2mm x 8.5mm) with a weight of just 2.5g. As with all TDK-Lambda's DOSA compatible footprint POLs, the iCH has an outstanding transient response without the need for externally mounted loop tuning components.
Product features include output trim adjustment, power good, remote sense and a choice of positive or negative logic remote on/off. Full protection, with auto-recovery, is provided against input under-voltage, output short circuit and over-temperature. All models are certified to UL/CSA 60950-1, IEC/EN 60950-1 and carry the CE mark for the Low Voltage and RoHS2 Directives.
