PowerSpot Charging Zone for Consumer Devices

Powercast to unveil FCC-approved power-over-distance wireless charging at CES

Jan. 3, 2018

Pittsburgh, PA (GLOBE NEWSWIRE). Powercast Corp. announced that it will unveil at CES 2018 its FCC-approved (Part 15, FCC ID:  YESTX91503) and ISED-approved (Canada IC:  8985A-TX91503) 3-W PowerSpot transmitter, which works in the far field (up to 80 feet) for over-the-air charging of multiple devices, with no charging mats or direct line of sight needed. Powercast said it used the experience it gained powering industrial and commercial devices with its initial Powercaster transmitter (FCC and ISED approved in 2010) to develop the new smaller, smarter, and less expensive PowerSpot transmitter specifically for the consumer market.

Creating a coverage area like Wi-Fi, a Powercast transmitter automatically charges enabled devices when within range. The transmitter uses the 915-MHz ISM band to send RF energy to a tiny Powercast receiver chip embedded in a device, which converts it to direct current to directly power or recharge that device’s batteries.

Powercast said it will begin production of its standalone PowerSpot charger now that it is FCC approved and is also offering a PowerSpot subassembly that consumer goods manufacturers can integrate into their own products. Powercast said it is in discussions with several manufacturers, and has inked deals with two household names, since releasing a wireless power development kit in early 2017 containing the PowerSpot subassembly.

“Consumer electronics manufacturers can now confidently build our FCC-approved technology into their wireless charging ecosystems and offer their customers convenient far-field charging where devices charge over the air from a power source without needing direct contact, like inductive charging requires, or near direct contact, like magnetic resonance requires,” said Powercast’s COO/CTO Charles Greene, Ph.D.

The company’s vision is to enable long-range, true wireless charging where consumers simply place all Powercast-enabled devices for charging within range of a PowerSpot in their home or a public place.

“Others might be talking RF power possibilities, but we have consistently delivered far-field wireless power solutions that work, safely and responsibly, under FCC and other global standards providing power up to 80 feet,” said Greene. “Our robust technology has capabilities beyond today’s permitted standards, so our product releases will evolve as regulations do.”

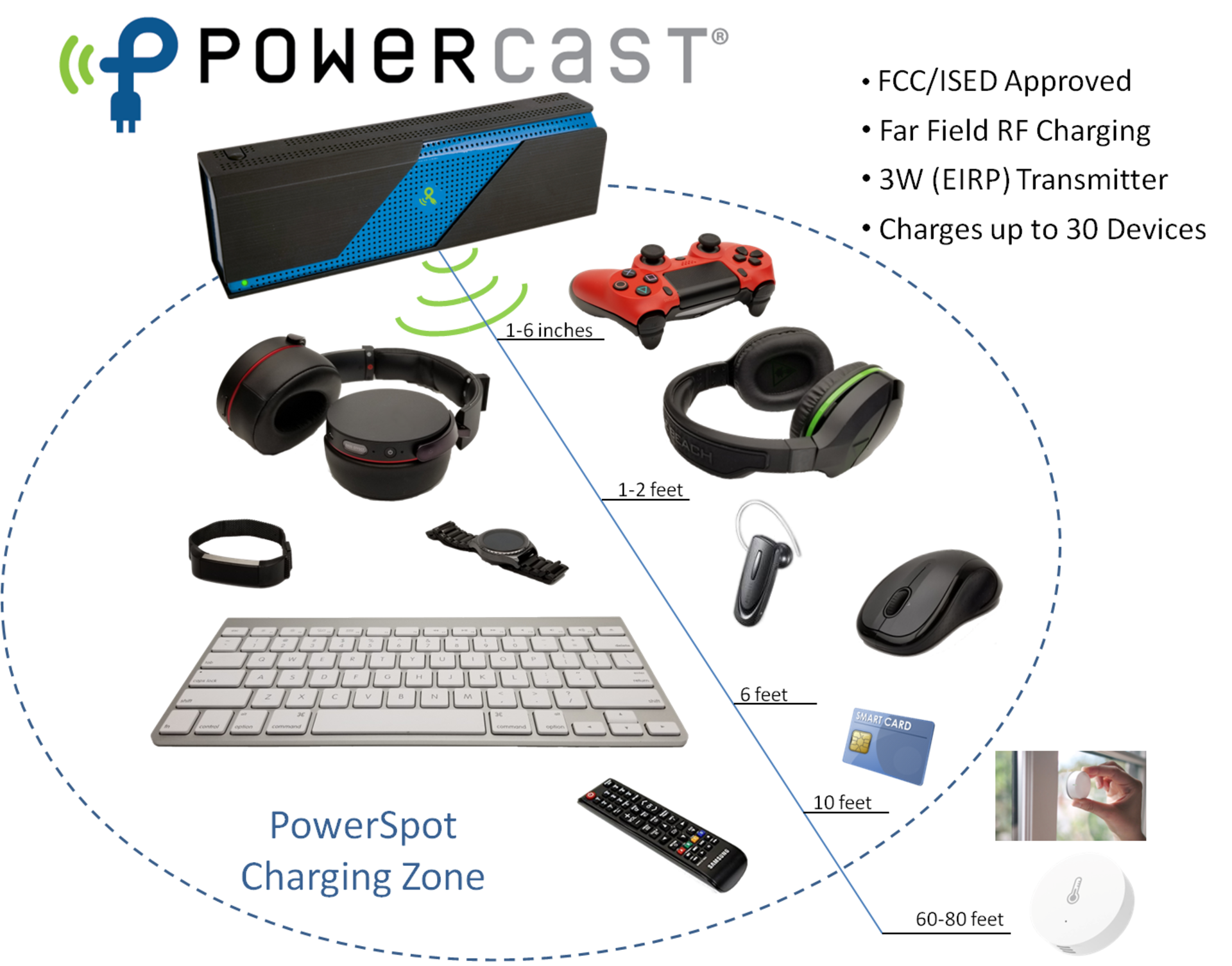

The PowerSpot creates an overnight charging zone of up to 80 feet free of wires or charging mats.

Enabled devices charge when in range, but don’t need direct line of sight to the PowerSpot. Powercast expects up to 30 devices left in the zone on a countertop or desktop overnight can charge by morning, sharing the transmitter’s 3-W (EIRP) power output. Charging rates will vary with distance, type, and power consumption of a device. Power-hungry, heavily used devices like game controllers, smart watches, fitness bands, hearing aids, ear buds, or headphones charge best up to two feet away; keyboards and mice up to six feet away; TV remotes and smart cards up to 10 feet away; and low-power devices like home automation sensors (window breakage, temperature) up to 80 feet away. An illuminated LED indicates devices are charging and it turns off when they’re done. Audible alerts indicate when devices move in and out of the charge zone.

The PowerSpot transmitter uses direct sequence spread spectrum (DSSS) modulation for power and amplitude shift keying (ASK) modulation for data, and it includes an integrated 6-dBi directional antenna with a 70-degree beam pattern.

“We know consumers also want to charge mobile phones, so at CES, we will showcase a technology demonstration, developed with a partner, of a PowerSpot transmitter that adds the Qi inductive wireless charging standard adopted by many mobile phones,” said Greene. “This combination would provide a best-of-both-worlds solution, operating within the FCC regulations that exist today, including RF over-the-air charging for multiple PowerSpot-enabled devices placed near the transmitter, and Qi proximity charging for power-hungry Qi-enabled mobile phones placed directly on the Qi charger on top of the PowerSpot transmitter.”

At CES, Powercast will demonstrate prototypes of its PowerSpot, 7.3″ long x 2.1″ tall x 1.4″ wide, as well as wirelessly-powered game controllers, headphones, smart watches, earbuds, smart clothing, illuminated retail packaging, and reconfigurable retail price tags.

PowerSpot said production units are expected in Q3 2018 for about $100 from distributors Arrow Electronics and Mouser Electronics. Once PowerSpot reaches mass production, Powercast projects a $50 ASP from major electronics stores or from consumer electronics manufacturers offering it as a charging option.

http://www.powercastco.com/powerspot/
