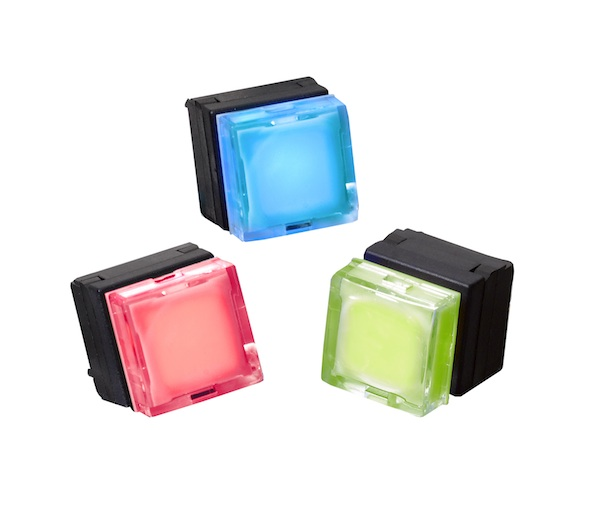

An RGB color option is now available for the LP6 series LED illuminated pushbutton switch from E-Switch. You can order this switch with either SPST or DPST circuit options and it is a momentary switch. It offers a 15mm square sculptured cap with LED color options that now include RGB.
The applications and markets for this switch include consumer electronics, medical devices, audio/visual, instrumentation, vending machines, kiosks and more. Specifications for the LP6 series illuminated pushbutton switch include:
· Contact Arrangement: SPST or DPST
· Contact Rating: 12 mA, 12 VDC
· Contact Resistance: 50 mΩ Max (initial)
· Insulation Resistance: 100 MΩ Min.@ 500 VDC
· Dielectric Strength: 500 VAC
· Electrical Life: 200,000 cycles
· Mechanical Life: 200,000 cycles
· Operating Temperature: -20 °C to 70 °C
· Storage Temperature: -20 °C to 70 °C
· Travel: 2.20 mm
· Actuation Force: SPST: 150 gf; SPDT: 200 gf
