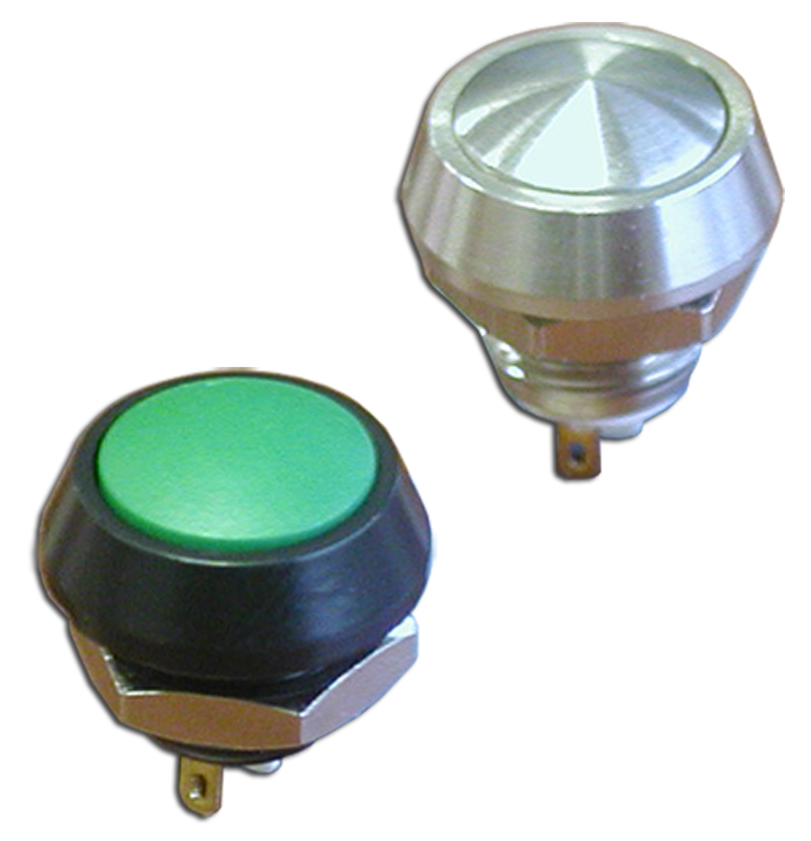

CIT Relay & Switch introduces the 12mm EH Series pushbutton switch. This newest addition to the CIT panel mount switch line is heavy-duty and rugged in construction - both splash and vandal proof. The EH series offers momentary switch function in a round style with a choice of brushed stainless steel or black anodized aluminum finish. Cap color options include five colors or stainless steel. The EH Series is available with screw terminals or solder lug termination.
Specifications Electrical rating: 2A at 48VDC Electrical life: 200,000 cycles with contact resistance of less than 50mohms Dielectric strength: 2000Vrms between contacts Insulation resistance: >100Mohms at 250VDC Actuation force: 500 ± 100gF with actuator travel of 1.7 ± 0.25mm. Operating and storage temperature: -20°C to 70°C.
Materials: Actuator is stainless steel or polybutylene terephthalate and base is polybutylene terephthalate. The housing is stainless steel or aluminum with silver alloy contacts. Terminals and nut hardware are nickel plated brass.
The EH Series pushbutton switches are ideal for security, industrial and public use applications. CIT Relay & Switch lead-time is six to eight weeks.
