Miniature Tact Switch Offers Illumination and Ip67 Ratings

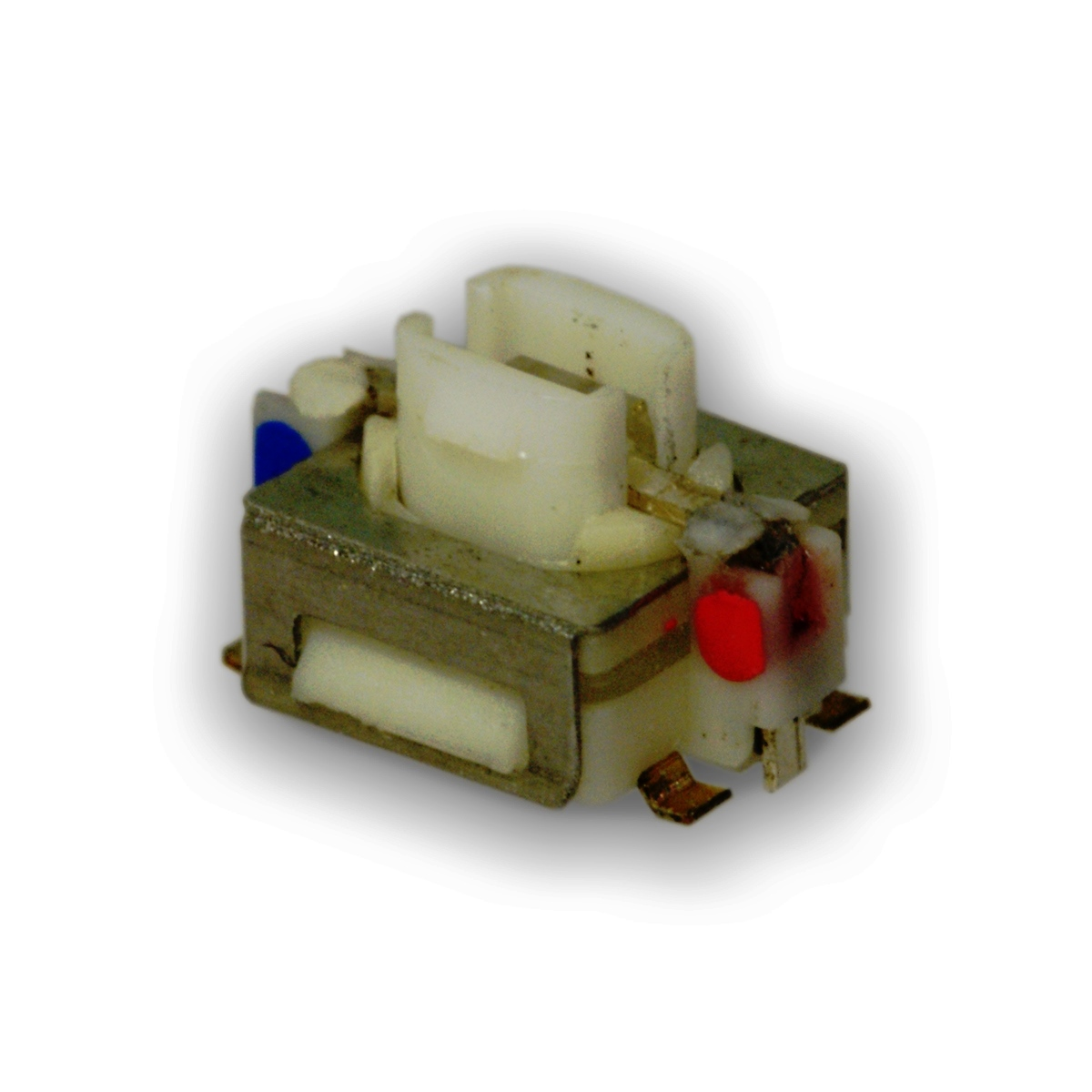

E-Switch announces the TL6210 series tact switch, offering a host of features including: surface-mount termination, miniature footprint, and sealed to IP67 ratings. It also offers illumination, with LED colors that include red, green, yellow, blue, white, and a combination of red/green or green/yellow. Applications for this tiny illuminated switch include consumer electronics, medical devices, instrumentation, and more.

Specifications for the TL6210 series miniature tact switch include:

• Electrical Rating: 50mA @ 12VDC
• Electrical Life: 100,000 Cycles
• Mechanical Life: 100,000 Cycles
• Contact Resistance: 500mW
• Insulation Resistance: 100 MW Min. @ 100VDC
• Dielectric Strength: 250VAC for 1 min.
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -20°C to 70°C
• Operating Force: 200 +/- 80 gf
• Travel: 0.45mm +/- 0.15mm
• Contact Arrangement: SPST
• Moisture Protection: IP67
