Mill-Max announces has added new crimp receptacles to its selection of wire termination products. The 07XX series are commercial-off-the-shelf (COTS) alternatives to the popular Mil-Spec M39029 female crimp terminals. The receptacles are fitted with the high reliability Mill-Max spring finger contacts in place of the slit and hooded terminals which characterize the M39029 products.

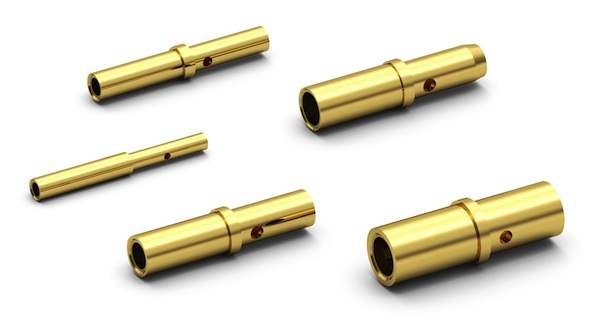

There are five new receptacles to choose from; all are two piece construction consisting of a precision-machined outer shell and stamped beryllium copper internal contact. Each has an inspection hole for viewing the wire during the crimping process and for promoting plating coverage inside the crimp hole. The Mill-Max part numbers specify 10 micro inches gold plating on the shell and 30 micro inches gold plating on the internal contacts. Thicker gold plating options are available upon request. All plating options have a nickel under-plate.
The 07XX series mates with our recently introduced M39029 COTS equivalent crimp pins (39XX series) as well as Mil-Spec M39029 pins (sizes 12, 14, 16, 20 & 22); when used together they provide an interconnect solution with wire crimp termination for discrete wires or cables. This family of receptacles provides crimp termination of wire sizes from 28 - 12 AWG.
