High Reliability Angle Sensors Offer 12-bit Resolution

May 14, 2015

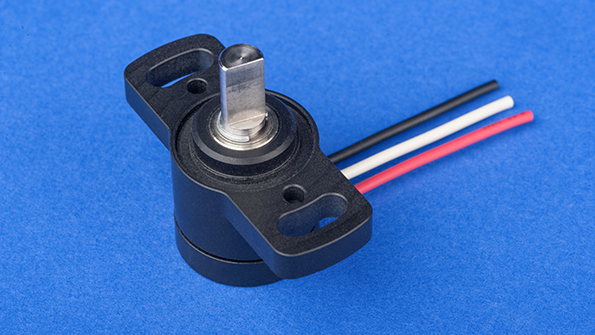

Novotechnik, U.S. introduces the Vert-X 2400 Series of compact angle sensors.

Novotechnik, U.S. introduces the Vert-X 2400 Series of compact angle sensors. Diameter of the housing base is 24 mm. These sensors convert rotational angle into a voltage output.

Vert-X 2400 Series sensors are available in single and fully redundant versions. Measurement range is 0 to 360° with repeatability of 0.1°.

Other key Vert-X 2400 Series specifications include 12-bit resolution and linearity of  ±1 % of measurement range.  The sensors are sealed to IP 67, life is > 20 million movements and MTTF is over 600 years.

These sensors are ideal for industrial, medical and off-highway vehicle applications with an operating temperature range of -40 to +125°C and high immunity to emissions -meeting or exceeding five EN 61000 and two EN 55000 standards.
