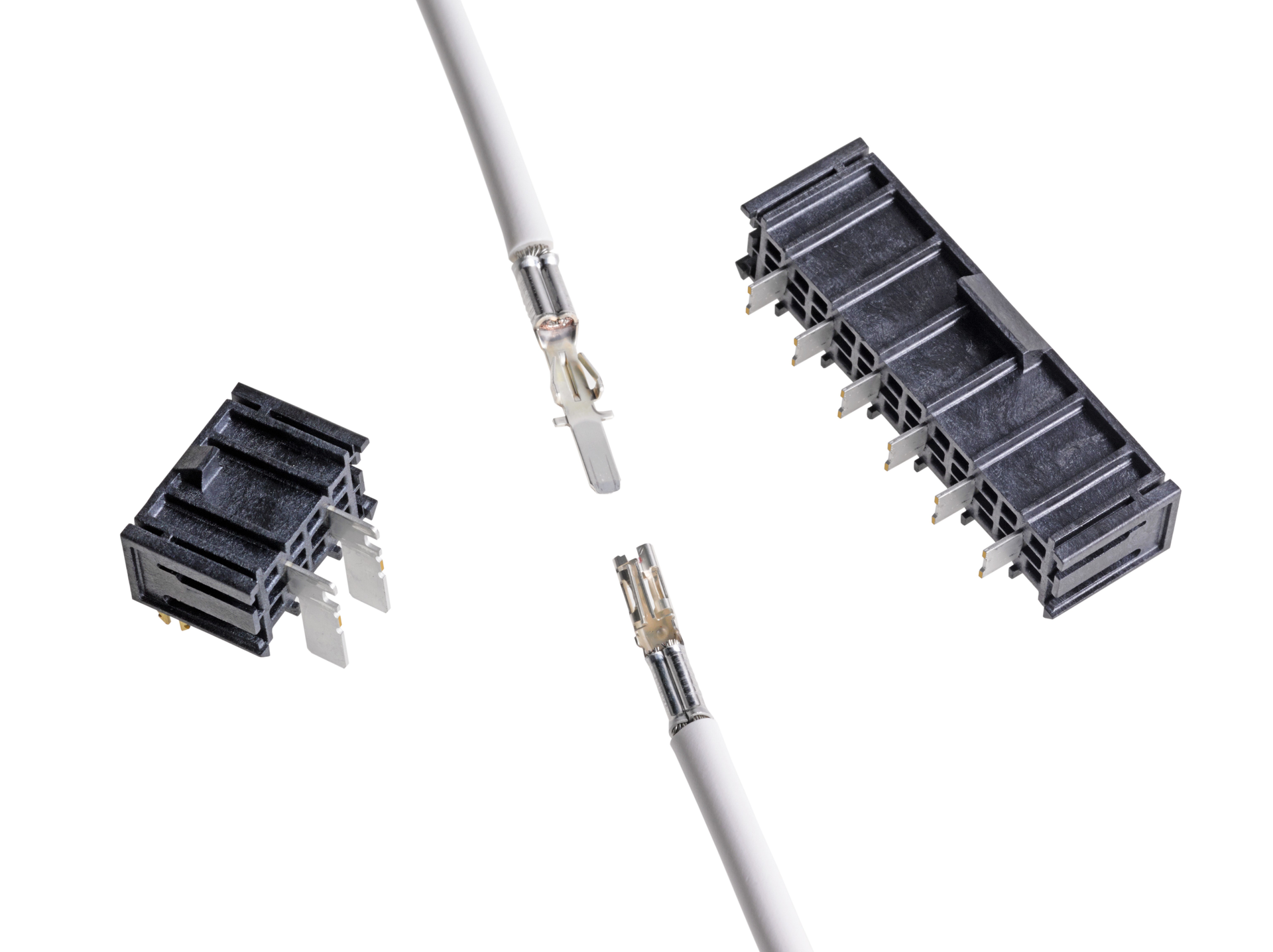

Molex Incorporated introduces the Super Sabre Power Connector System for all high-current applications where flexible wire-to-wire and wire-to-board configurations are required.
Delivering 34.0A per blade and withstanding up to +125°C operating temperatures (USCAR-2, level 3), Super Sabre power connectors are well-suited to automotive and commercial vehicle applications as well as the appliance, medical, datacom and industrial control industries.
Optimized for 10 to 12 AWG wires, the Super Sabre Power Connector System accommodates both wire-to-wire and wire-to-board configurations and is compatible with lead-free wave soldering and reflow soldering processes. Silver-plated, high-conductivity alloy terminals are used to minimize fretting corrosion concerns. The flat-blade terminal design with four independent points of electrical contact offers redundant, secondary current paths for long-term performance and reliability. In addition, the terminal design provides a more reliable electrical connection than other terminal styles.
The terminals are fully-isolated on both mating sides to provide maximum protection against damage or shorting. Positive latch and Terminal Position Assurance (TPA) features prevent terminal backout. The optional UL1977 and UL60950 "Finger Test" certified blade meets safety requirements for many consumer applications.
