Hirose has added a compression-mounted 2.4mm coaxial connector to its extensive RF connector offering that is ideal for applications in lab equipment, test equipment, characterization boards, and high-speed backplanes for data/computing and network analyzers. The H2.4 Series meets the MIL-STD348B standard, and supports up to 50 GHz with a transmission speed of 25 Gbps.

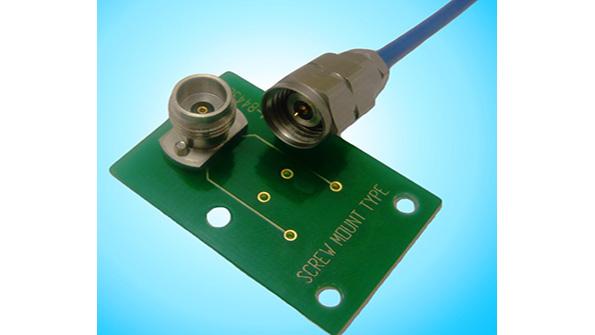

Featuring a stub-less design with screw-mounting to the PCB, the high-bandwidth H2.4 Series coaxial connector simplifies the assembly process and provides several electrical and mechanical advantages over soldered versions. With traditional soldered through-hole type models, signal reflection may be caused by the stub protruding through the board, but the with H2.4 compression-mounted connector, the center contact is mounted flush with the PCB. This eliminates the stub, and signal reflection is significantly reduced. The H2.4 Series also optimizes design flexibility as it can be used with PCB boards of various thicknesses (1.6mm minimum). In addition, the connector is reusable and can be attached and removed to boards for multiple uses, saving time and costs.
The H2.4 Series plug is manufactured with a 0.085 inch semi-flexible cable with terminated plugs on each end, and the receptacle features a gold-plated ground ring for stabilizing grounding on the PCB.
The connector has a contact resistance of 4 mW max in the center and 2 mW max in the outer section. This H2.4 Series connector series is rated for 500 mating cycles with a characteristic impedance of 50 W.
