Tact Switch Offers Right Angle Mount and IP67 Ratings

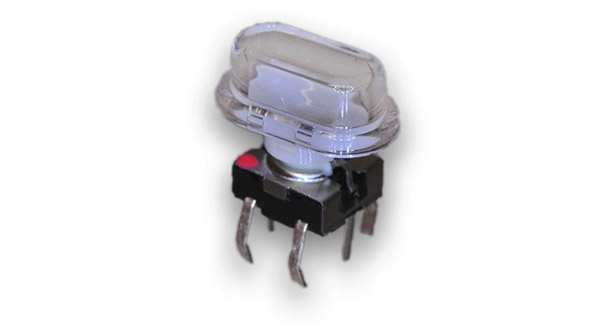

E-Switch has introduced the TL6215 series tact switch. This switch offers a 500,000 cycle life expectancy, right angle or vertical termination, multiple cap and illumination options, and IP67 ratings.
The applications and markets for the switch include medical equipment, audio/visual, computer peripherals, consumer electronics, telecommunications, instrumentation and more.
Specifications for the TL6215 series tact switch include:
- Electrical Rating: 50mA @ 12VDC
- Electrical Life: 500,000 Cycles
- Mechanical Life: 500,000 Cycles
- Contact Resistance: 100mW Max.
- Insulation Resistance: 100M W Min. at 500VDC
- Dielectric Strength: 250VAC for 1 min.
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -20°C to 70°C
- Operating Force: 200 gf; 450 gf
- Travel: 0.45mm
- Dust/Moisture Protection: IP67
- Contact Arrangement: SPST
