Ultra-Compact Hollow Shaft Angle Sensors

Jan. 27, 2016

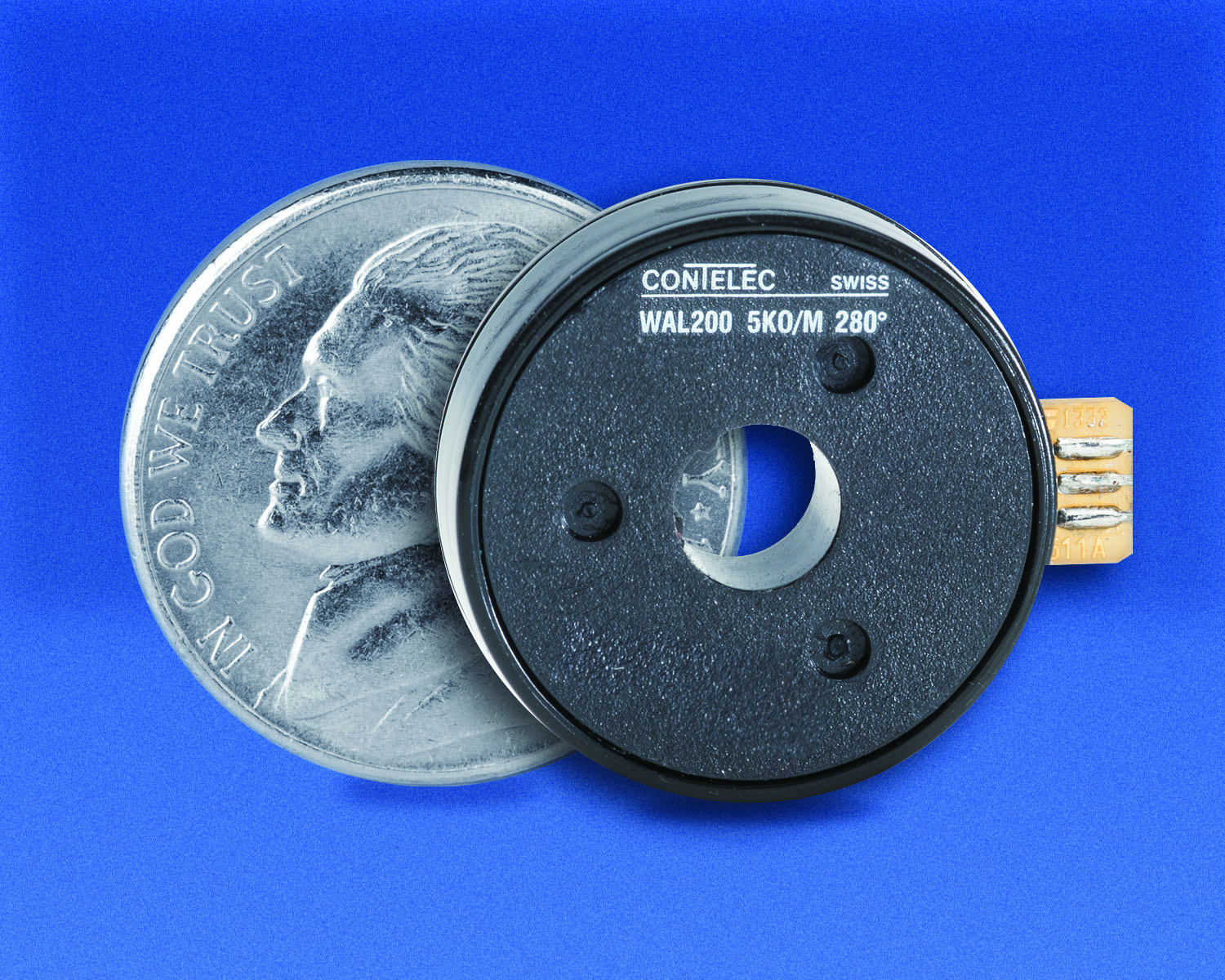

Novotechnik recently introduced the new WAL 200 Series of hollow shaft angle sensors that provide absolute, rotary position.

Novotechnik recently introduced the new WAL 200 Series of hollow shaft angle sensors that provide absolute, rotary position. Sensor dimensions are 7 x 22 mm. The WAL 200 Series has a measurement range of 0 to 340°. Mechanical range is a continuous 0 to 360°.

Other key specifications include resolution of < 0.3°, repeatability of 0.3° and independent linearity of ±1 % of measurement range. As an absolute sensor, the WAL 200 Series continues to track angle even if power is removed, reporting the correct position when power is restored. WAL 200 Series sensors have a minimum life of 2 million mechanical movements.
