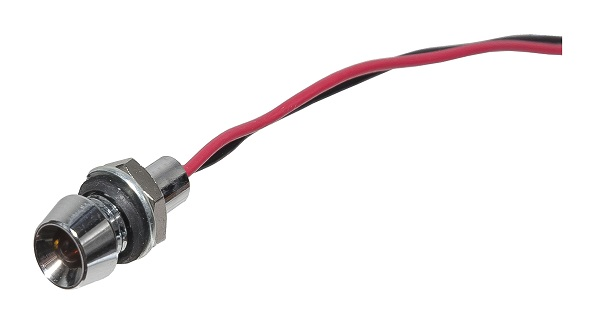

Watertight LED Panel Mount Indicator
VCC has designed an LED panel mount indicator with a robust metal body that provides drip-proof protection. The 0.230 in. (5.9 mm) watertight L60 Series LED panel mount indicator utilizes a tinted diffused LED with a 45 degree viewing angle.
With an attractive, reflective chrome plated body, the watertight L60 Series is ideal for automotive, aerospace, industrial, instrumentation, medical, military, mining, outdoor, safety, transportation and vending & gaming machine applications.
Available in design voltages of 5 VDC, 12 VDC, and 28 VDC, the L60 Series LED panel mount indicator has 6-inch (152.4 mm) 24 AWG wire leads and is designed to mount in a 0.230 in. (5.9 mm) mounting hole with a maximum panel thickness of 0.070 in. (1.7 mm). Mounting hardware comes standard.
The RoHS compliant LED panel mount indicator is offered in red, amber and green colors.
