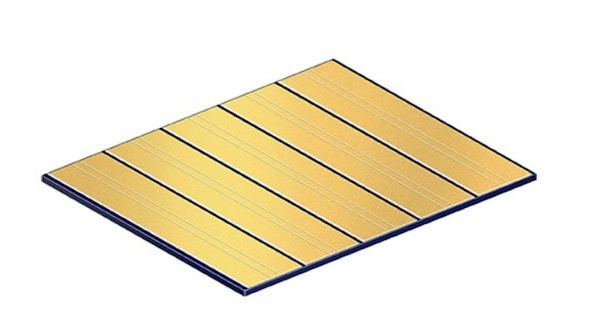

With the high-power LPL BF98-40-5 laser bar, Osram has optimized the chip design in terms of beam quality. The result is a laser with a wavelength of 976 nanometers (nm) and high brilliance - the yardstick for the beam quality of a laser. The laser achieves a brilliance of 3 watts (W) per millimeter and one mrad divergence angle at an optical output of 44 W - an unsurpassed combination. The SPL BF98-40-5 laser bar is 5 mm wide and consists of five emitters, each 100 micrometers ( m) wide and each with a cavity length of 4 mm.
Brilliant laser sources generate a narrow beam of light with extremely small beam divergence and high power density. The lateral divergence of the beam emitted by the SPL BF98-40-5 is between 6° at 30 W and approx. 9.5° at 60 W. This divergence was calculated for the portion of the laser beam containing 95 percent of the optical output power.
With its unique brilliance, the SPL BF98-40-5 laser bar is setting new standards for fiber-coupled systems. The beam quality of a laser is a crucial factor for coupling laser light into optical fibers. The lower the brilliance, the less light is coupled into the fiber. This, in turn, makes the systems more inefficient and more expensive. Conversely, a brilliant light source greatly simplifies the design of the optical system.
Fiber-coupled diode laser systems are used predominantly in the automobile industry for vehicle chassis welding, soldering and coating. The laser diodes are also often used for pumping fiber lasers. The wavelength of 976 nm is ideal for pumping ytterbium-doped fiber lasers in particular. These are laser types that can be used for cutting metal, thanks to their excellent beam quality. Osram has specifically matched the wavelength of the SPL BF98-40-5 to this pumping application.
Apart from its high brilliance, the new laser bar offers excellent electro-optical efficiency of, e.g., 65 percent at 44 W. This reduces the level of cooling needed for the laser diode and improves the efficiency of the entire system. The temperature rise at the chip is therefore not as great so the laser exhibits very good aging stability. Tests show a drop in output of less than one percent after 4000 hours of operation at an optical output of 65 W and a cooling water temperature of 25°C.
