AEC-Q200-Qualified Capacitors

March 19, 2013
AVX Corporation has developed a unique new series of high-voltage, conformally coated, radial leaded MLC capacitors for automotive applications.

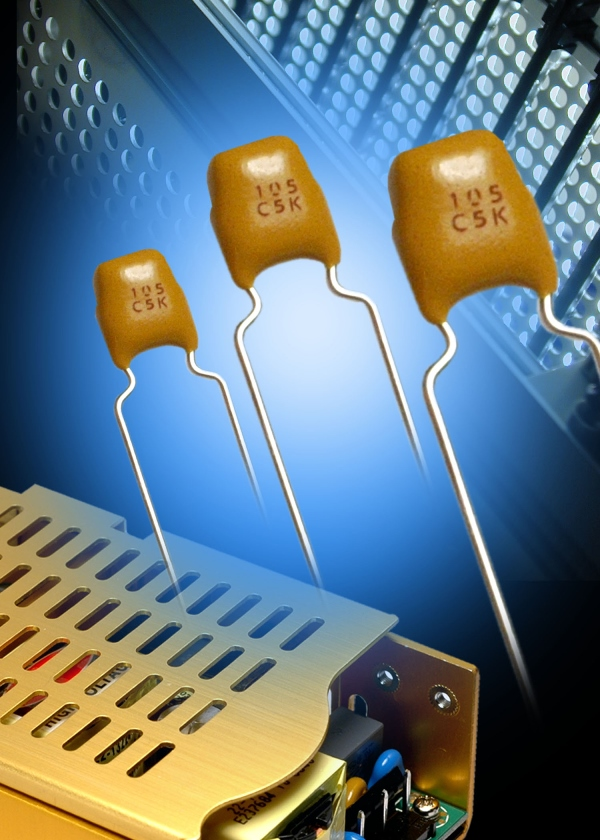

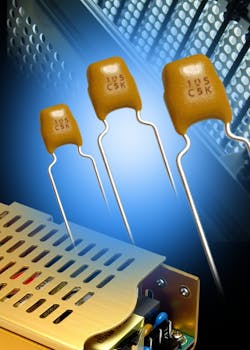

AVX Corporation has developed a unique new series of high-voltage, conformally coated, radial leaded MLC capacitors for automotive applications.  An extension of its successful Skycap® Series, AVX's new X7R dielectric High Voltage AR Series capacitors feature a working voltage range of 1000V to 3000V, are AEC-Q200 qualified, and are readily available in two popular sizes, AR21 and AR30; additional sizes are available upon request.

AVX's new Skycap® High Voltage AR Series capacitors possess the robust construction, excellent vibration characteristics, considerable thermal resistance, and high quality for which the Skycap® Series is known.   Capacitance values for the AR Series range from 470pf to 68,000pf and its tolerance values are ±5%, ±10%, ±20% and +80%-20%.  Fully qualified to automotive specification AEC-Q200, the Skycap® AR Series is ideal for use in automotive electronics, power supply decoupling and filtering, and a variety of high voltage applications.

Datasheets, samples, qualification data, and pricing are available upon request.  Current lead time is 11 weeks.
