Precision Thin Film Chip Resistor Arrays Offer Tolerances As Low As 0.1%

March 27, 2013
The RAVN Series from Stackpole is a thin film based chip array designed for applications with tight tolerance or tight TCR requirements

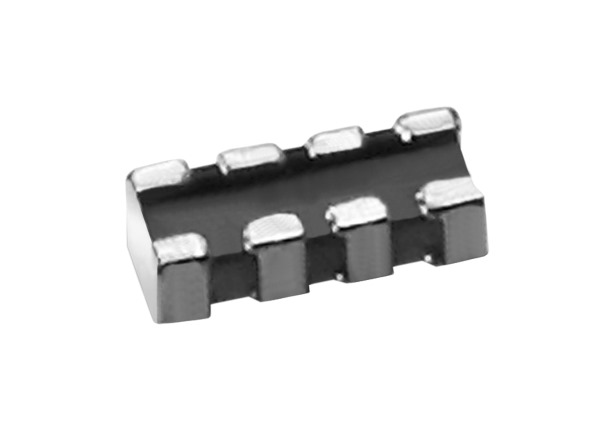

The RAVN Series from Stackpole is a thin film based chip array designed for applications with tight tolerance or tight TCR requirements.  The RAVN Series offers four resistive elements in a package measuring 1.6mm by 3.2mm with resistance values from 100 Ω up to 33K Ω in a 0.1% tolerance.  This part can also achieve 10 ppm TCR for a limited resistance value range.  The RAVN Series also has the outstanding environmental and electrical stability expected of thin film resistors.

The RAVN Series is ideal for a wide range of test instrumentation, gauges, meters, and scopes.  It is also a good choice for precision controls, robotics, medical instruments, and high speed data communication.

The RAVN164D is available in 5K reels.  Pricing for the RAVN Series varies with tolerance and TCR and ranges from $0.032 to $0.24 each in full reel quantities.  Contact Stackpole or one of our franchised distributors for pricing inquiries.
