Extended Capacitance Range and Voltage Ratings for X7R MLCCS

July 1, 2014

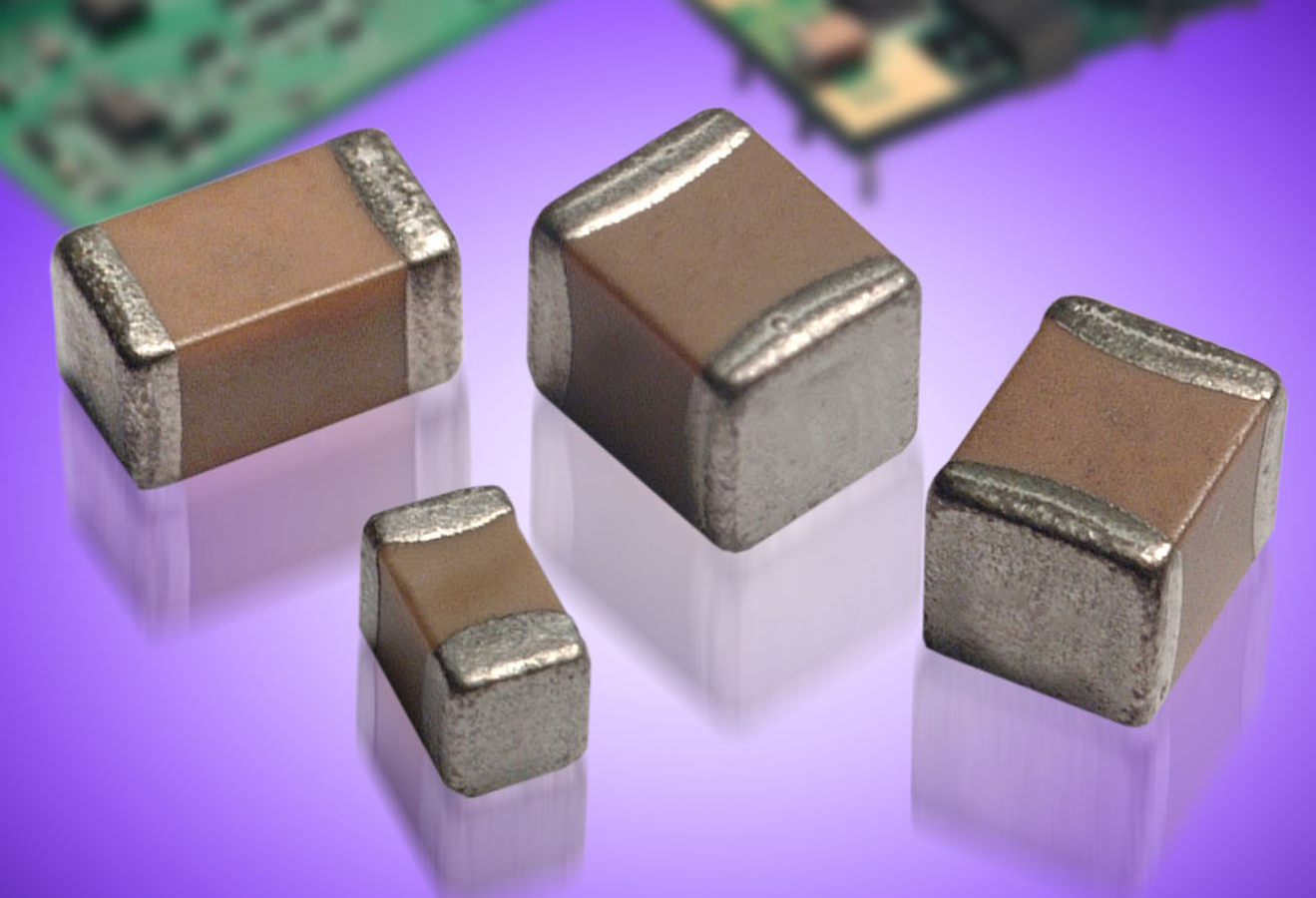

AVX Corporation has extended the capacitance range and voltage ratings for its X7R MLCCs, resulting in a much broader product offering with several new high volumetric efficiency options.

AVX Corporation has extended the capacitance range and voltage ratings for its X7R MLCCs, resulting in a much broader product offering with several new high volumetric efficiency options.  Available in sizes spanning 01005 to 2225, AVX's X7R MLCCs exhibit high K and low ESR and are now available with capacitance values spanning 100pF to 47µF and standard voltage ratings spanning 4V-500V.  High voltage X7R MLCCs with ratings up to 5000V are also available, as are automotive and alternate termination options.

Ideal applications for X7R MLCCs include decoupling and filtering in mobile, medical, and digital applications, such as: cell phones, tablets, high speed processors/FPGAs, and implantable medical devices, in which high volumetric efficiency is especially critical.  The series is also particularly well suited for use as snubbers, resonators, filters, or DC blocking caps in automotive, medical, industrial, and commercial electronics, including: displays, high voltage multipliers, high frequency power converters, and SMPS. Exhibiting a non-linear TCC within ±15% from -55°C to +125°C, AVX's X7R MLCCs are ideal for use in a broad spectrum of industrial applications in which known capacitance changes in response to applied voltage are acceptable and are available in nine standard voltages (4V, 6.3V, 10V, 16V, 25V, 50V, 100V, 200V, and 500V), three capacitance tolerances (±5%, ±10%, and ± 20%), and three terminations: plated Ni/Sn, plated gold, and Flexiterm®, the latter of which enables significantly enhanced mechanical reliability by allowing more than twice as much board flexure as standard terminations. The devices can be packaged on 7" or 13" reels or shipped in bulk with standard lead times and are RoHS compliant.
