Shielded Small Footprint SMD Power Inductors

July 1, 2014

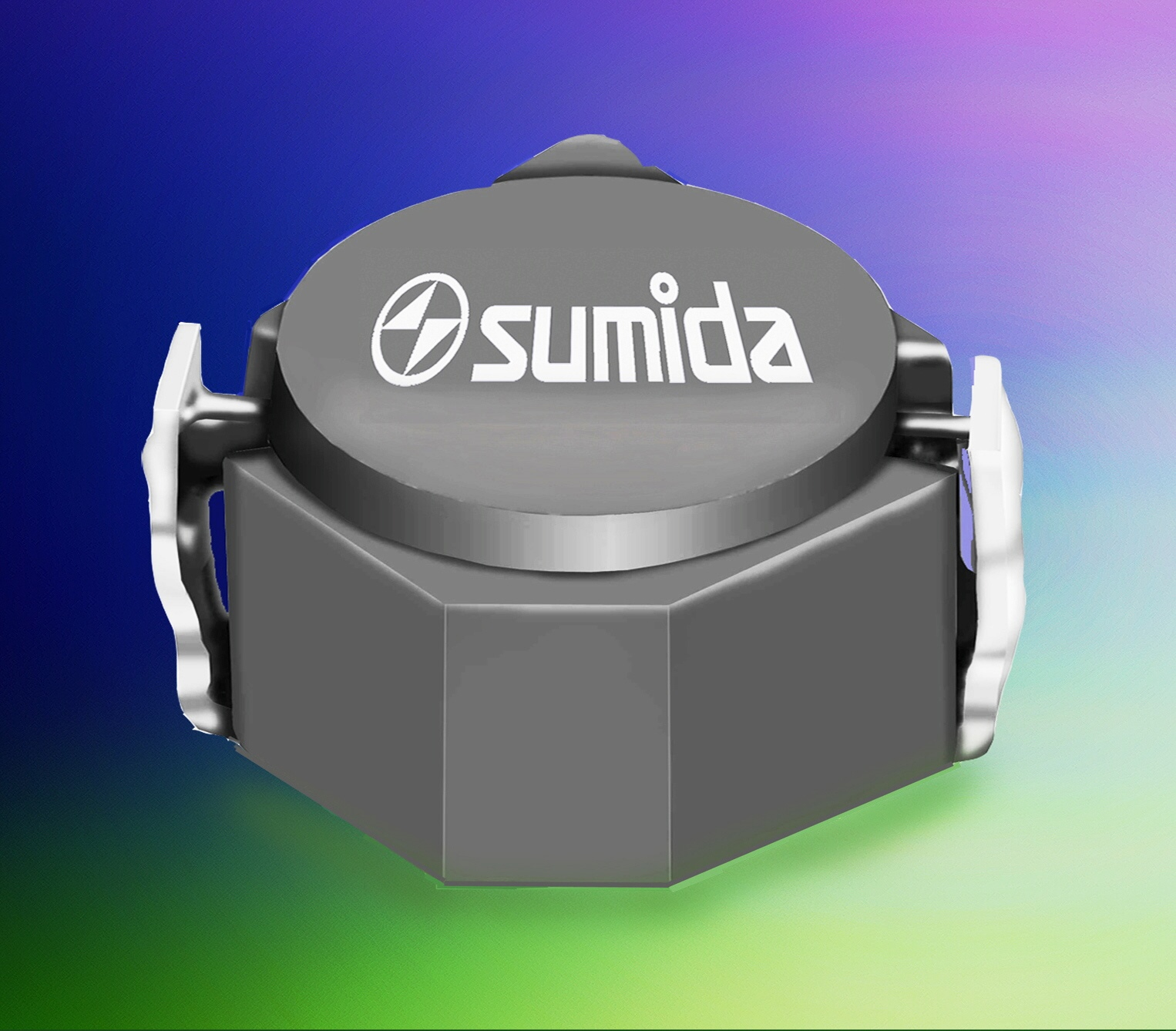

Magnetically shielded Sumida CDRH3D23 Series Power Inductors are a strong choice for high-density power circuitry.

Magnetically shielded Sumida CDRH3D23 Series Power Inductors are a strong choice for high-density power circuitry.  With ferrite drum construction and a unique geometry, these devices yield higher inductance values than other inductors with a similar footprint.  Measures just 3.92 x 3.92 x 2.5 mm.

Inductance values range from 0.47 µH - 47 µH.  DCR is as low as 18.8mohm  (typ.@ 20 C).  Current handling capabilities are above average.  The device is RoHS compliant and halogen-free.

The CDRH3D23 Series offers a full-rated temperature range of -40  to +105 C, and solder reflow temperature to 260 C peak.  Additional benefits include compliance with IPC/JEDEC Moisture Sensitivity Level 1, for unlimited floor life at ?30 °C/85% RH.

Applications include driver circuitry, DC-DC converters, switching power supplies and regulators, boost converters, buck-boost regulators and more.  These circuits may be powering wireless communications products and MM2M power circuitry.  Standard packaging is carrier tape and reel packaging, 7.0"diameter reel, 500pcs per reel.

Like other Sumida products, CDRH3D23 Series power inductors meet or exceed the highest industry standards for quality and repeatability.  Full application engineering support is available.

The CDRH3D23 Series power inductors ARE available with 30 day delivery.
