Hi-Rel COTS Solid Tantalum Capacitors With Metal Case And Hermetic Sealing

Feb. 18, 2015

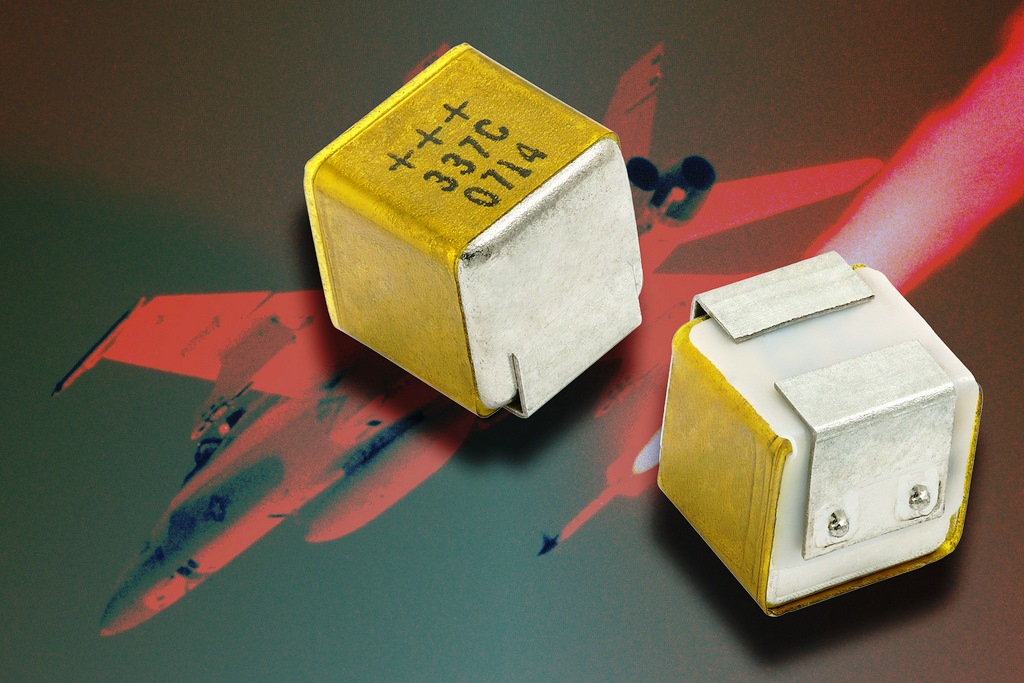

Vishay Intertechnology, Inc. introduced a new TANTAMOUNT® Hi-Rel COTS series of surface-mount solid tantalum chip capacitors for military and avionics applications.

Vishay Intertechnology, Inc. introduced a  TANTAMOUNT® Hi-Rel COTS series of surface-mount solid tantalum chip capacitors for military and avionics applications. The industry's first such devices to feature a metal case and hermetic sealing to meet the requirements of MIL-STD-202, Method 112, Condition A, the Vishay Sprague T25 series offers low ESR down to 180 mW at +25 °C and 100 kHz and is available with surge current testing options in accordance with MIL-PRF-55365.

The devices are optimized for timing applications, the capacitors offer high reliability with burn-in at rated voltage for a minimum of 40 hours, while their hermetic sealing eliminates any moisture sensitivity.

Offered in the D case code, T25 devices feature a capacitance range from 22 µF to 330 µF over voltage ratings from 16 V to 50 V; capacitance tolerances of ± 10 % and ± 20 %, and an operating temperature range of -55 °C to +85 °C, to +125 °C with voltage derating. RoHS-compliant, the capacitors are available with 100 % tin or tin / lead terminations.

Samples and production quantities of the new T25 series are available now, with lead times of 12 to 16 weeks for larger orders.
