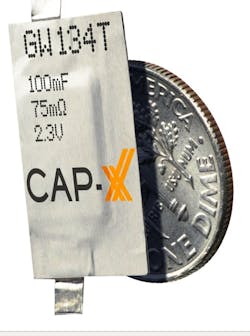

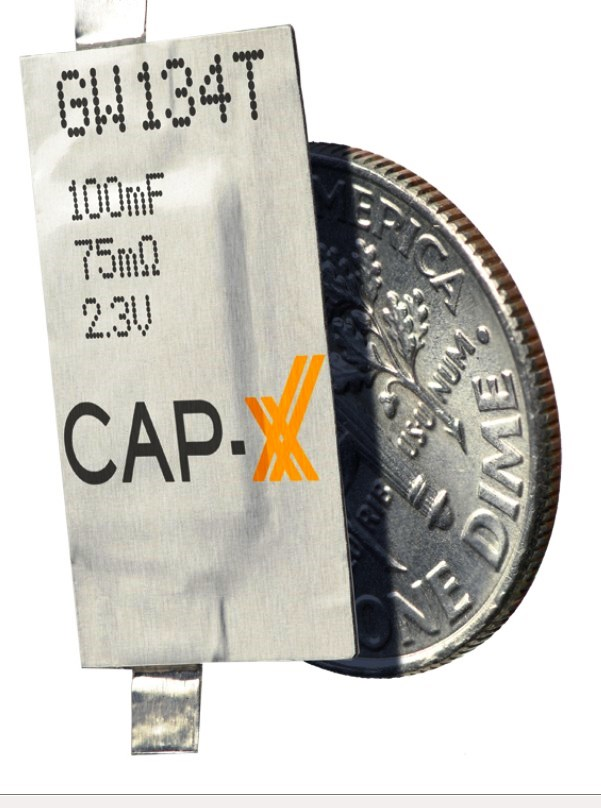

CAP-XX has launched its Thinline series of single-cell supercapacitors. The world's thinnest at 0.6mm thick, and with prices starting at less than US$1 in large volumes, Thinline was developed to address the size, weight and cost challenges of designing thin, sometimes disposable electronic devices for the Internet of Things (IoT). Examples include wearables (medical, fitness and health monitors, smart watches, drug delivery systems), portables (active credit cards, smartphones, RFID tags), and connected electronics (smart homes and smart buildings, electronic shelf labels, wireless sensor networks).
To reduce thickness and manufacturing costs, CAP-XX increased the power and energy density in its electrode materials to deliver equivalent performance in about half the volume, and eliminated the folded edges and copper terminals that contribute to thickness in its standard line supercapacitors. (For comparison, CAP-XX's thinnest traditional single-cell supercapacitor is 1.10mm.)
CAP-XX supercapacitors benefit from a unique nanotechnology construction that stores electrical charge in engineered carbon electrodes on aluminium foil, to minimize resistance and maximize capacitance (scroll down to CAP-XX Nanotechnology to view diagrams at www.cap-xx.com/products/photo-gallery). This unique electrode construction packs the highest energy and power densities possible into thin, prismatic packages.
CAP-XX Thinline supercapacitors support power requirements in IoT devices including wireless communication (Bluetooth, Bluetooth Smart, Zigbee, Z-Wave, Ant, active RFID), electronic paper and OLED displays, haptic or tactile feedback, vibration alerts, GPS acquisition, and injection or inhalation system delivery. Thinline works with thin-film, solid-state, and other low-power batteries such as coin cells/button cells, energy harvesting modules (solar, vibration/kinetic, RF, and other ambient energy sources), as well as inductive/wireless and cable/cradle fast-charging systems.
CAP-XX Thinline supercapacitors are available in three footprints:
- "A" series: 19.5mm x 20.0mm x 0.6 - 0.9mm thick, 60 - 180 mF, 45 - 200 mW
- "W" series: 28.0mm x 20.2mm x 0.6 - 0.9mm thick, 100 - 300 mF, 24 - 120 mW
- "S" series: 39.0mm x 20.2mm x 0.6 - 0.9mm thick, 180 - 540 mF, 16 - 75 mW
Suggested retail price for all 0.6mm cells is less than US$1 in large volumes. The 0.7mm and 0.9mm cells in each series have higher C/lower ESR and cost slightly more. All parts are available in a 2.3V / 70°C, or 2.75V / 85°C configuration. They can be assembled by soldering or welding (ultrasonic, laser or spot).
