Soft-Termination MLCCs with X8R Thermal Characteristics

July 29, 2015
TDK Corporation has introduced high-temperature resistant MLCCs with soft terminations, expanding the CGA series of MLCCs for automotive applications.

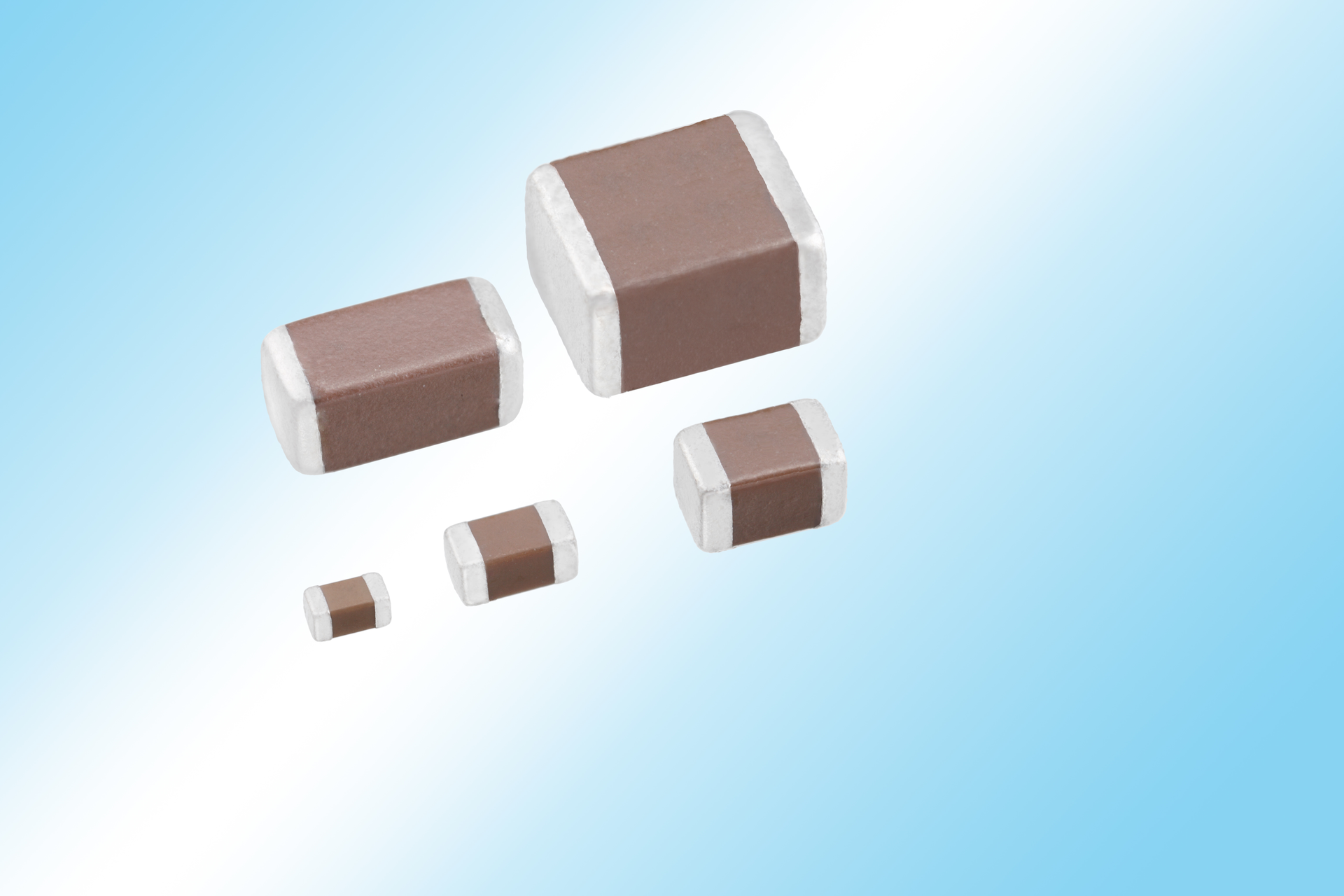

TDK Corporation announces the introduction of high temperature resistant MLCCs with soft terminations, expanding the CGA series of MLCCs for automotive applications. These components employ electrodes made of conductive resins that provide effective protection against solder cracks caused by thermal cycling, flex cracks caused by stress to the PCB, and damage due to vibrations and shocks. In addition, the new CGA series of MLCCs employ an X8R dielectric material and are thus able offer stable capacitance values (±15 percent) at temperatures from -55 °C to +150 °C.

The new components are available in package sizes of IEC 1005 (EIA 0402) to IEC 3225 (EIA 1210) and offer rated capacitances ranging from 150 pF to 10 µF and rated voltages from 16 V to 100 V. The new series include the world's only X8R soft-termination MLCC in an IEC 1005 package*. Thus, TDK offers the broadest lineup of crack-resistant MLCCs designed for demanding automotive applications. These components are especially suitable for ECUs used in high temperature environments such as engine compartments and where space is at a premium as well as for use in smoothing and decoupling circuits. Mass production of the new MLCCs, which are qualified to AEC-Q200, started in June 2015.

Modern cars increasingly rely on electronic systems and implement electric operation, which has led to a drastic increase in the number of electronic components found in such vehicles. At the same time, there is a strong trend towards locating electronic control units in the engine compartment or near other structural parts in order to gain more space for passengers. Electronic components used for such applications must be able to withstand high temperatures and severe vibrations. The new MLCCs retain all the advantages of existing soft-termination products and are fully compliant with the industry's most stringent X8R specifications.

  • Suitable for harsh environmental conditions from -55 °C up to +150 ºC
  • High resistance against solder cracks caused by thermal cycling, flex cracks caused by stress to the PCB, and damage due to vibrations and shocks
  • Wide capacitance range from 150 pF to 10 µF
  •  Qualified to AEC-Q200
