QPL Status for Wirewound 0603 Chip Inductors

API Delevan recently introduced the M83446/36 inductor series to support high frequency RF applications in military, aerospace and defense communities.

Dec. 9, 2015

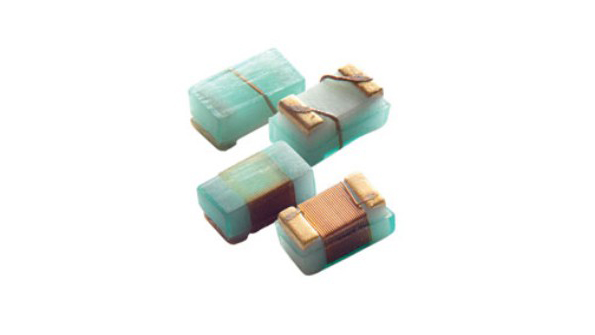

Powerelectronics 3854 085066 Api Delevan

API Delevan recently introduced the M83446/36 series. Qualified to the MIL-PRF-83446 standard, the M83446/36 inductor series is designed in a 0603 case size to support high frequency RF applications in military, aerospace and defense communities, including communications, guidance and security applications, radar, test and evaluation and special mission applications.

Features:

Qualified to MIL-PRF-83446 standard
Operating Temperature Range of -55°C to +125°C
Low AC & DC resistance, minimizing voltage drops and dissipated power
Utilization of specialty outgassing materials for low outgassing properties
Available in Gold (Au) termination.

In accordance with MIL-PRF-83446 standards, all M83446/36 series inductors are subjected to 5 cycles of Thermal Shock, post-thermal shock Inductance and Q Testing, as well as visual and mechanical inspection. The SRF and DCR parameters are also verified.
