Automotive Grade IHLP Inductor in 5050 Case Size

Oct. 19, 2016
Vishay Intertechnology introduced a new Automotive Grade IHLP low-profile, high-current inductor in the 5050 case size featuring a +180 °C continuous operating temperature rating for under-the-hood applications.

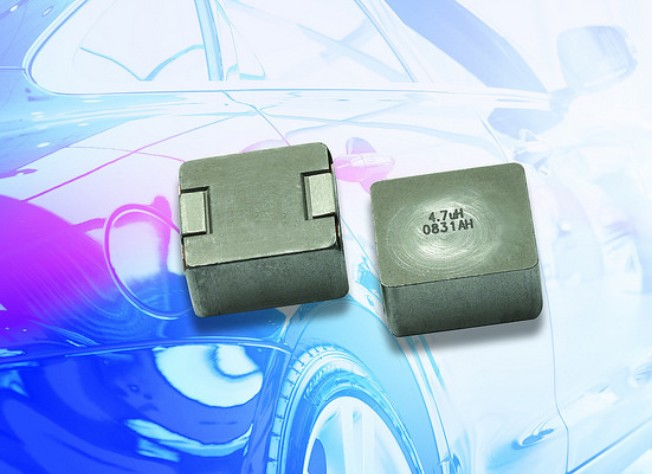

Vishay Intertechnology, Inc. introduced a new Automotive Grade IHLP® low-profile, high-current inductor in the 5050 case size featuring a +180 °C continuous operating temperature rating for under-the-hood applications. Offering a low 6.4 mm profile, the Vishay Dale IHLP-5050FD-8A provides a wide range of inductance values from 0.22 µH to 22 µH.

With a frequency range up to 2 MHz for energy storage inductors in DC/DC converters and up to the inductor's SRF for filter applications, the device released today exceeds AEC-Q200 requirements to provide a high-performing, space- and power-saving solution for DC/DC converters and high-current noise filters in high-temperature automotive systems. Applications include engine and transmission control units, diesel injection drivers, noise suppression for motors, windshield wipers, HID and LED lighting, heating and ventilation blowers, and other applications in which high-temperature operation is required.

The IHLP-5050FD-8A handles high transient current spikes without hard saturation. Packaged in a 100 % lead (Pb)-free shielded, composite construction that reduces buzz noise to ultra-low levels, the device is specified for an operating temperature range of -55°C to +180°C, with high resistance to thermal shock, moisture, mechanical shock, and vibration. The inductor is RoHS-compliant, halogen-free, and Vishay Green.

Samples and production quantities of the new inductor are available now, with lead times of 10 weeks for large orders. Pricing for U.S. delivery only in 10,000-piece quantities begins at $2.00 per piece.
