IP54 Rated HPLC Fans

Nov. 5, 2014
Qualtek's series of High Performance Low Cost, HPLC series, AC fans have been tested to IP54 and withstand harsh environmental conditions, including dust and water.

Qualtek's series of High Performance Low Cost, HPLC series, AC fans have been tested to IP54 and withstand harsh environmental conditions, including dust and water.  With industry-leading prices, these fans are available standard with IP54, and carry no additional upcharge for this rating.

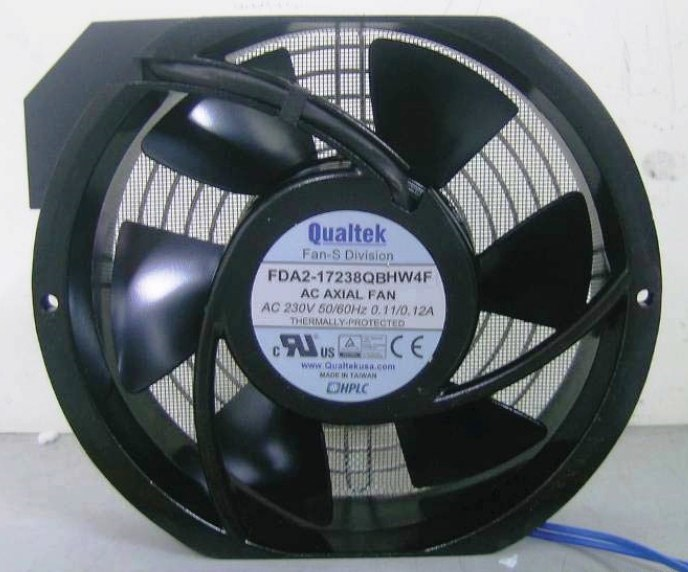

The FDA2 series HPLC AC fans feature a thermal protected external rotor capacitor-run induction motor, two ball bearing system with an available 100,000 hour bearing option, aluminum alloy frame, one piece forged steel impeller, and optional UL94V-0 plastic impeller for increased airflow.  These fans are also available in an IP56 rated version for very harsh environmental conditions.

Qualtek also offers a complete range of AC and DC fans in a large variety of bearing types: 2-Ball, 1-Ball 1-Sleeve, and Sleeve, with a wide range of speeds. AC fans are available from 115 to 230VAC and sizes from 60mm to 280mm, DC fans are available from 3.3-60VDC and sizes from 20mm to 280mm with a large array of functions and special features.
