1U High Six-Position Short Fan Tray

Feb. 18, 2015

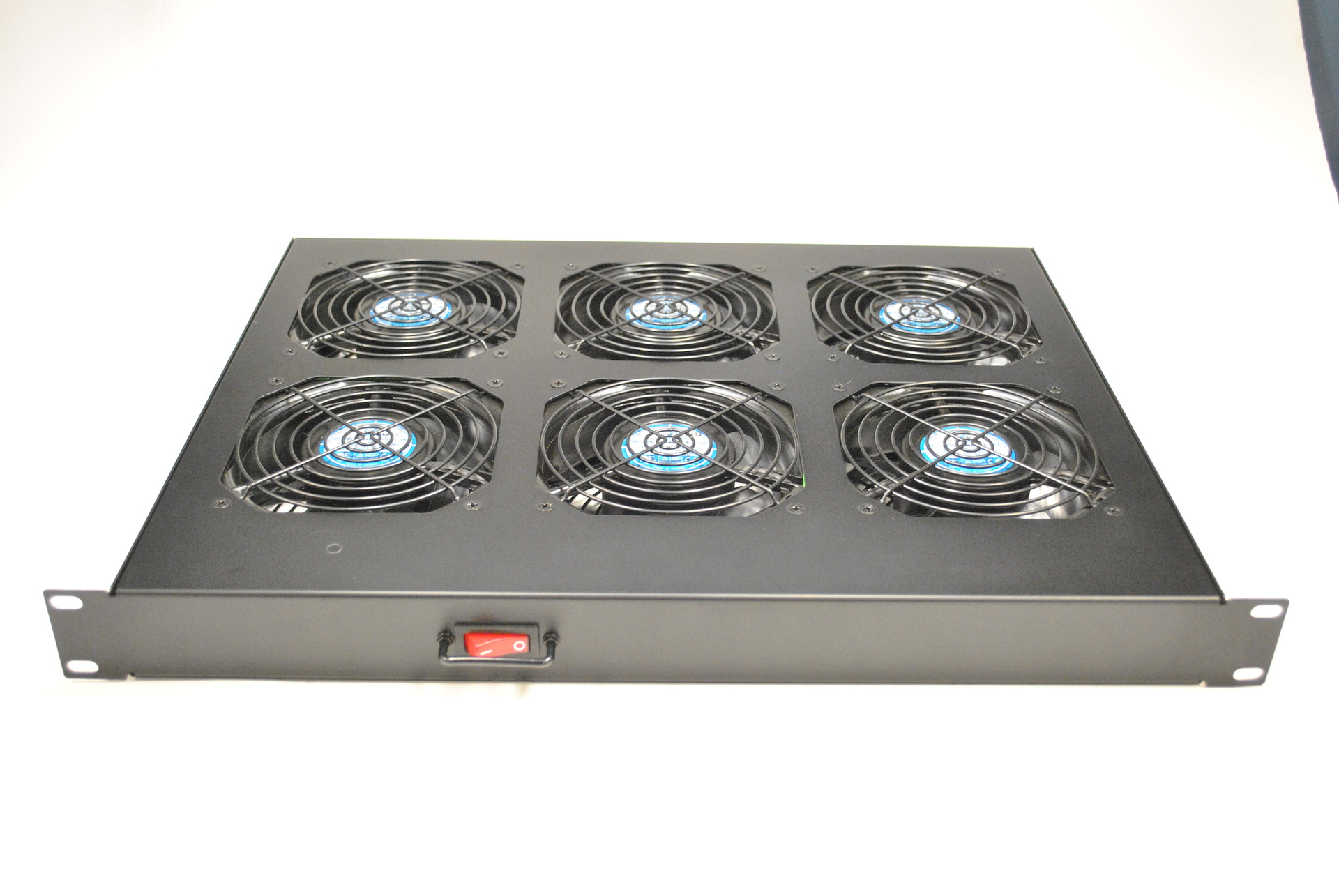

Orion fans introduced OA600ST Series short fan tray, a price-competitive six-position AC fan tray.

Orion fans has introduced the OA600ST Series short fan tray, a price-competitive six-position AC fan tray.It is ideal for a variety of racks and enclosure applications including industrial control cabinets and network system enclosures

Features of the fan tray:

  • 1U high
  • Available in six or three positions
  • Achieves airflows up to 620 CFM
  • Noise-level of only 56dB
  • Life expectancy of 60,000 hours at 25°C

Specifications:

  • Features a 2M-length power cord for North American NEMA 5-15P or IEC320-C14 connection
  • Protected lighted rocker switch
  • Resettable circuit breaker for protection
  • Sealed ball-bearing fans
  • Installs in any standard 19" rack
  • Available in 115VAC and 230VAC versions
  • Operating temperature range of -40°C to +75°C
  • Power rating of 90W
  • Steel fan trays feature a black electro deposit finish

The OA600ST Series AC fan tray starts at $240.00 in small quantities
