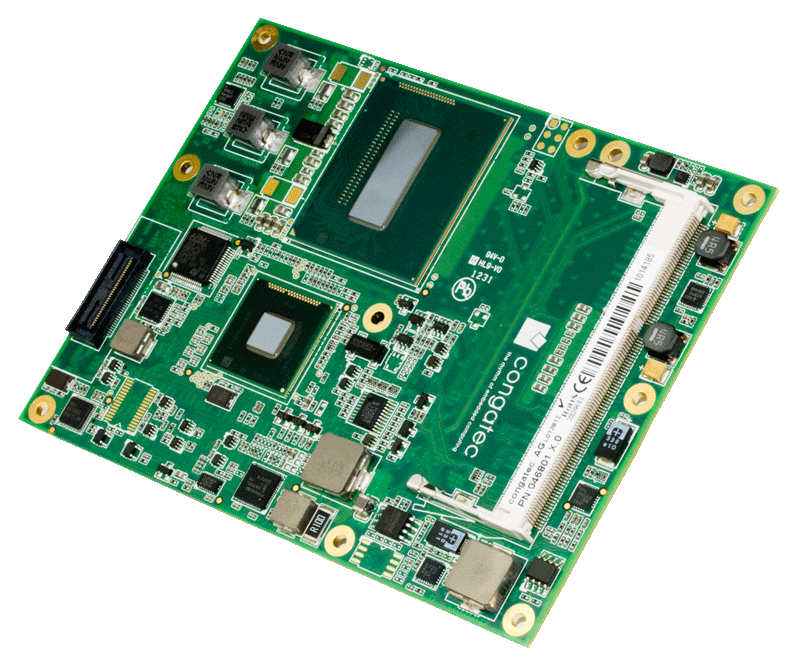

Expanded support for congatec’s conga-TS87, a pin-out Type 6 COM Express module based on fourth-generation Intel CoreT two-chip processors, includes Intel’s Advanced Vector Extensions 2.0 for improved floating-point instructions in signal and image processing. Beyond the quad-core CoreT i7-4700EQ processor, it supports the CoreT i3-4100E. The CoreT i5-4100E processor brings extended, consistent scalability. It supports USB 3.0 and PCI Express 3.0 with additional PCI Express lanes. The module comes with the Mobile Intel QM97 Express chipset, and maintains dual-channel DDR3L memory up to 16 Gbytes, 16 Mtransfers/s. Integrated graphics support Intel Flexible Display Interface (FDI), DirectX 11.1, OpenGL 4, and OpenCL 1.2, as well as high-performance, flexible hardware decoding for parallel decoding of multiple high-resolution full HD videos. It features 4K2K pixel resolution of up to 3840 by 2160 with DisplayPort, and 4096 by 2304 with HDMI is natively supported in the processor.
