Fanless Embedded System Solves Business Needs

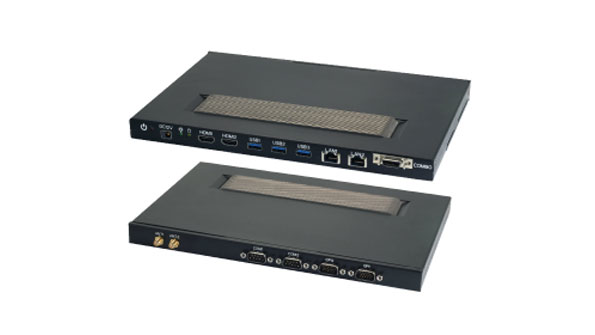

Integrating Intel Core i7 and i3 series CPUs, the AES-HM76Z1FL embedded system’s fanless thermal design and ultra-thin frame make it suitable as a business solution for system integrators. Its two IP cameras and two monitor displays lend the system to surveillance technology, and deliver the computing performance for audio entertainment. Two 204-pin SO-DIMM sockets support 1333-/1600-MHz DDR3 up to 16 Gbytes. I/O includes an HDMI/VGA/USB/audio/GPIO output interface, two RS-232 and two RS-422/485, three USB 3.0 and two USB 2.0, two Gigabit Ethernet, one SIM, and one MiniPCe (for 3G/Wi-Fi). There’s also support for SATA III and Compact Flash storage. Potential application fields include the banking industry, fast-food restaurants, hotel management, and home/community security watch.

ACROSSER TECHNOLOGY CO. LTD.
