    USB 3 Hub Handles Production Chores

    Jan. 4, 2017
    Technology Editor Bill Wong takes a hands-on look at Acroname’s programmable USB 3 hub that is designed for production work.
    William G. Wong
    Electronicdesign Com Sites Electronicdesign com Files Uploads 2016 12 18 Screen Shot 2017 01 04 At 7 39 30 Am
    1. Acroname’s programmable USBHub3+ hub has dual upstream ports and is programmable using either of these ports or a third, out-of-band port.

    Acroname’s programmable USBHub3+ hub (Fig. 1) is designed for production work. It is also a heavy-duty industrial hub certified to withstand ±15kV ESD strikes. It is certified to IEC61000-4-2 Level 4.

    I checked out Acroname’s BrainStem technology that is built into the hub using the HubTool (Fig. 2), as well as writing some simple Python scripts. There is also an API for C and C++, which means it is accessible to any language that has C/C++ link support. It also works with systems like TestStand and LabView.

    Electronicdesign Com Sites Electronicdesign com Files Uploads 2016 12 18 Fig 2 Hubtool

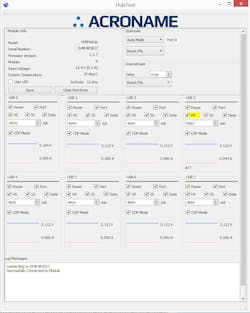

    2. The graphical HubTool is a Windows application that shows the hub’s status and can provide basic control of all the ports.

    The programmable interface is easy to use or access via the APIs, and it allows operations like enabling or disabling any downstream port. The system also has control of the data, SS lines, and power lines for any port. This includes monitoring the voltage and current (Fig. 3) on all ports and controlling how much current each gets up to 4A/port. Current limit trip points can be set for any port.

    Electronicdesign Com Sites Electronicdesign com Files Uploads 2016 12 18 Fig 3 Hubtoolplotwindow
    3. The HubTool can provide a graphical display or power usage.

    The rear panel (Fig. 4, top) includes a pair of host connections, although only one can control devices attached to the system since USB is a single root system. Software management can occur using either port, as well as the control port that is also a USB port. The latter only has control functions and is not accessible to or from the other ports in the system.

    Having two upstream ports is handy when running system tests since it is possible to switch from, say, a PC to a Mac that is already connected without unplugging and replugging a cable. I just tested it with a PC running Windows and another running Linux.

    Electronicdesign Com Sites Electronicdesign com Files Uploads 2016 12 18 Screen Shot 2017 01 04 At 7 46 00 Am

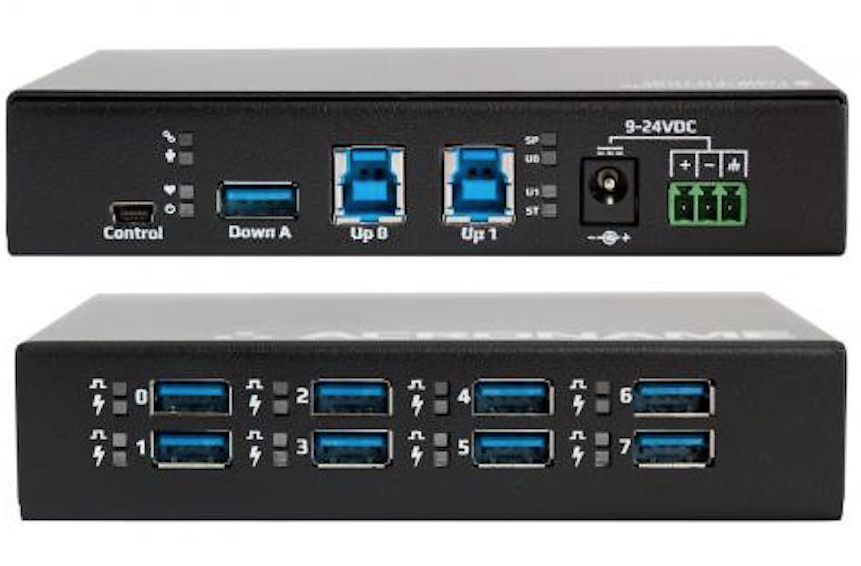

    4. The USBHub3+ has a pair of upstream ports and an additional downstream port for expansion.

    The USBHub3+ is as easy to use as a conventional hub, plus it has the bells and whistles that are easily accessible programmatically. How you take advantage of it will depend upon your application, be it system or USB product testing or industrial control with a fallback option. It was easy to get up and running in an afternoon from a programmatic standpoint.
