SIP Module Supports Time-Sensitive Networking

May 20, 2025

Octavo Systems' OSD62x-PM incorporates a Texas Instruments AM62x SoC.

Related To:

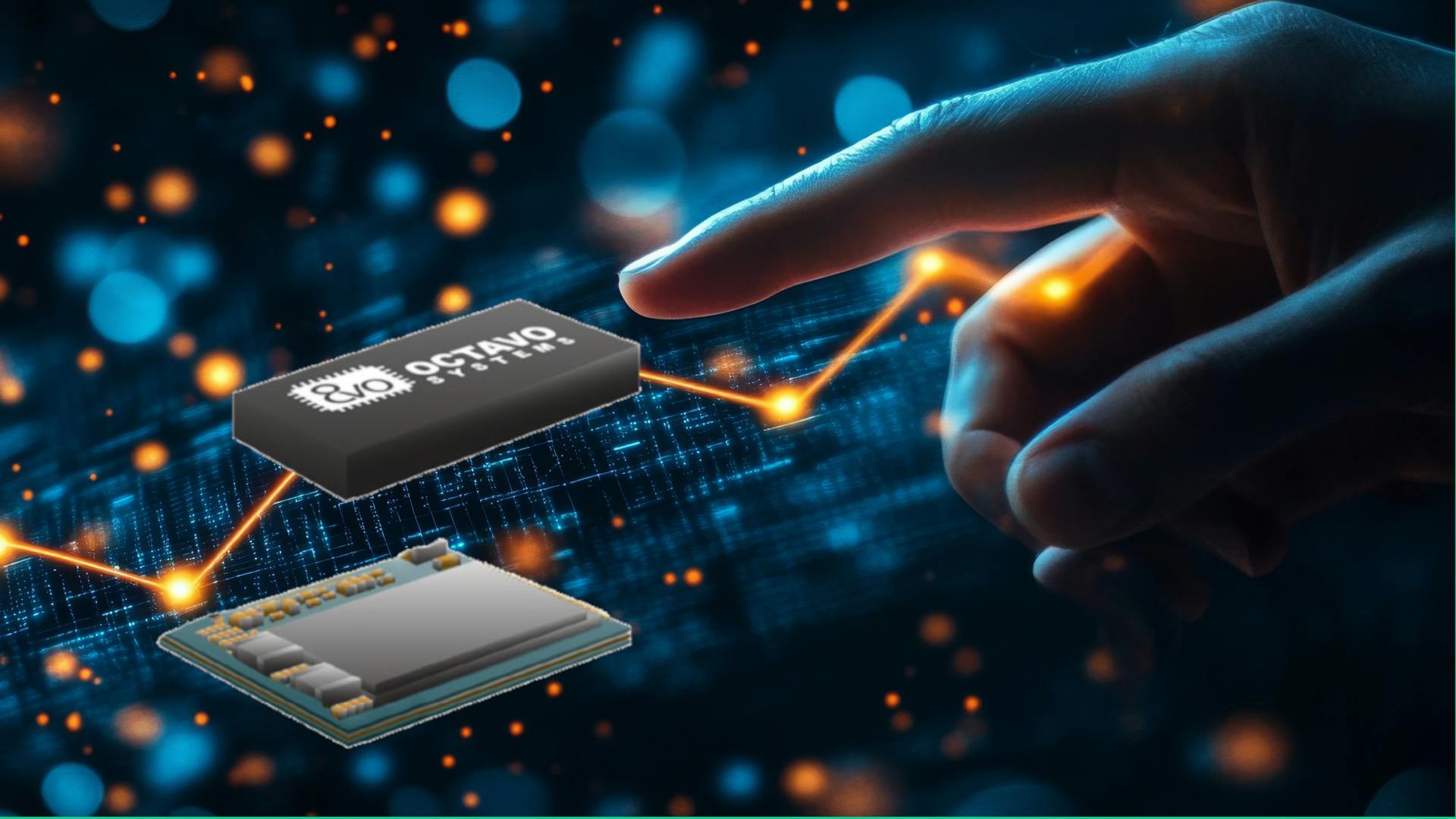

Octavo Systems' OSD62x-PM system-in-package (SiP) family is based on Texas Instruments' AM62x processors (see figure). The SiP also includes DDR4 memory and passive components in a 9- × 14-mm BGA package.

The AM62x packs up to four, 1.4-GHz Arm Cortex-A53 cores along with an Arm Cortex-M4F to handle real-time chores. The 3D GPU can deliver up to 2048 × 1080 pixels at 60 frames/s. It supports OpenGL ES 3.1 and Vulkan 1.2. The video output features OLDI/LVDS (two 4-lane interfaces) and a 24-bit RGB parallel port. Also in the mix are MIPI CSI 1.3 Compliant + MIPI-DPHY 1.2 ports.

Connectivity includes a 10/100/1000 Ethernet switch with time-sensitive networking (TSN) support. There are two USB 2.0, nine UART, three CAN-FD, five SPI, six I2C, and three McASP ports. Among other ports are an eMMC, two SDIOs, and a GPMC.
